WARNING
IF ANY CONDENSED HUMIDITY IS
FOUND INSIDE THE CASE PLEASE
CONTACT YOUR VENDOR OR
HANNA CUSTOMER SERVICE.
Screw the pH probe (HI1005) in the lower position and the ORP probe (HI2008) in the higher position
and assure that no leakage occurs.
Only after the probe is in final position connect the probe to the dedicated connector. Lock the
connector with the built in nut.
Warning: Never connect or disconnect the probes when the analyzer is powered on.
INSTALLING THE PUMP TUBES

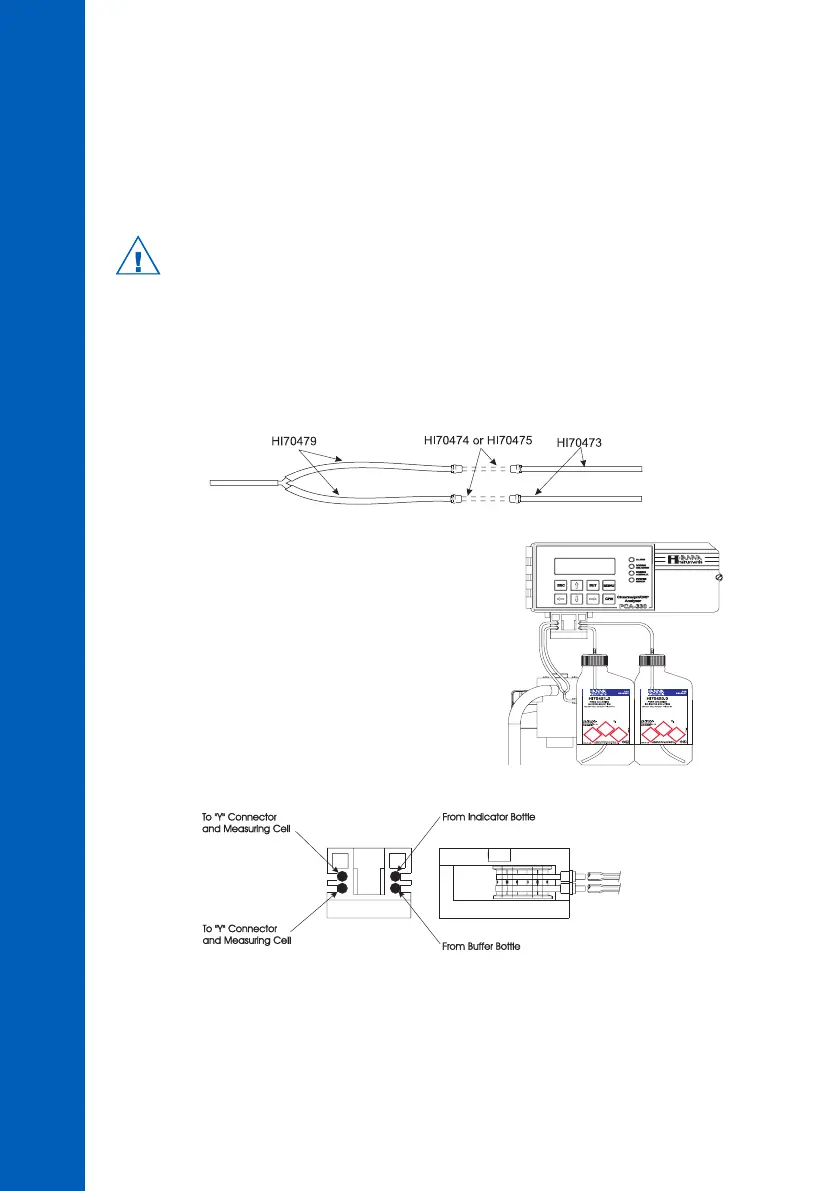

Locate the analyzer reagent tubes in the accessory kit. Each tube is composed of three sections. The
sections are joined together by plastic connectors with plastic collars at the ends of the center section.
Locate the peristaltic pump.
Feed one tube from the shorter end section behind the pump
rollers from the right side of the pump. Seat the plastic collar
at the right end of the center section of tubing into the lower
right indentation hole of the pump face.
Grasp the other plastic collar and pull, stretching the center sec-
tion, and place the grommet in the lower left indentation hole.
Repeat this process with the second pump tube, placing it in the upper indentation holes.
Separate reagent caps are provided in the accessory kit. Put the supplied caps onto each reagent
bottle prior to installing them.
