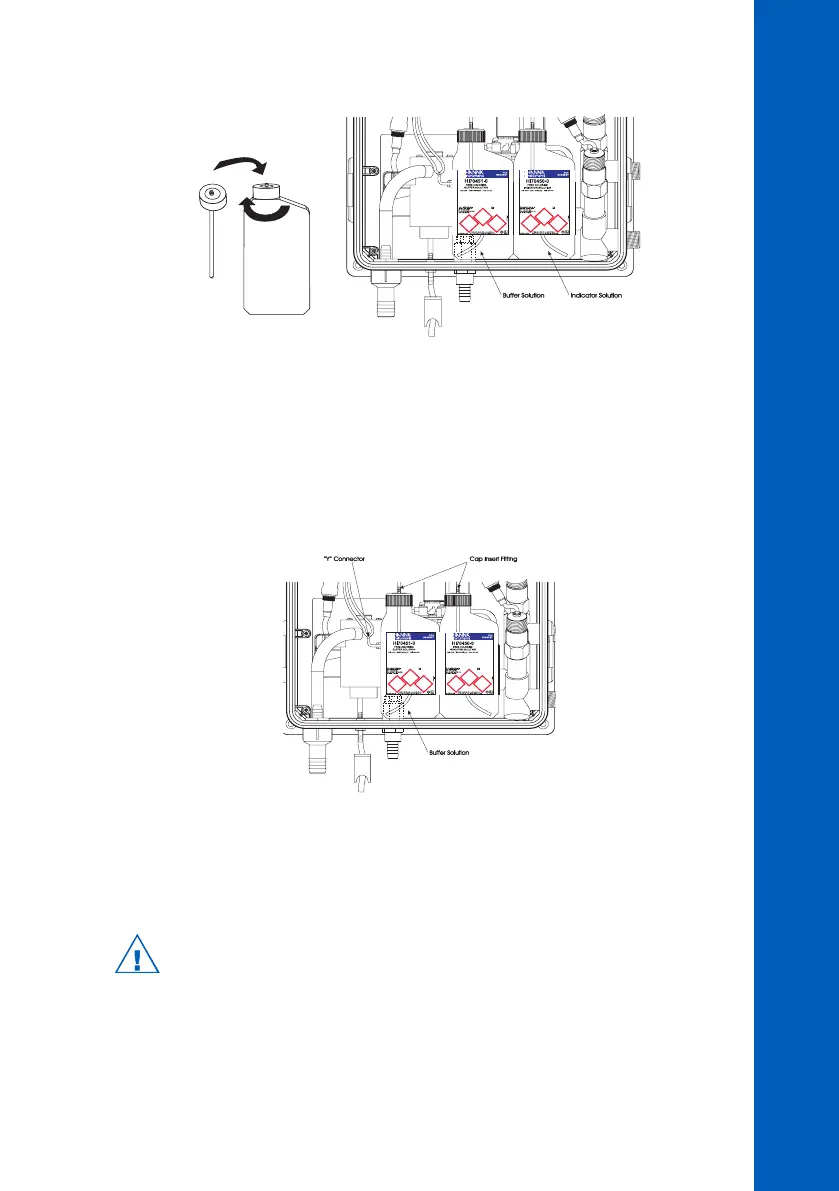

Place the indicator bottle (HI70450 for free chlorine and HI70460 for total chlorine) on the right and
the buffer bottle (HI70451 for free chlorine and HI70461 for total chlorine) on the left.
Note: Add the content of 5 HI70452 sachets, DPD Compound, to the Indicator Solution prior
to installing it.
Connect the longer tube ends on the left side of the pump to the reagent bottle cap insert fitting.
Connect the short ends in the right side of the pump to the measuring cell reagent input port through
the “Y” connector.
ELECTRICAL CONNECTIONS
A power cable (3 mt.) is provided with your analyzer. However, if access to the terminal block is
required, see below.
Warning: Electrical connections should be installed only by qualified personnel to assure
conformity to applicable electrical codes.
Unplug the meter before any electrical connection.
INITIAL PREPARATION AND INSTALLATION
To Next Page
