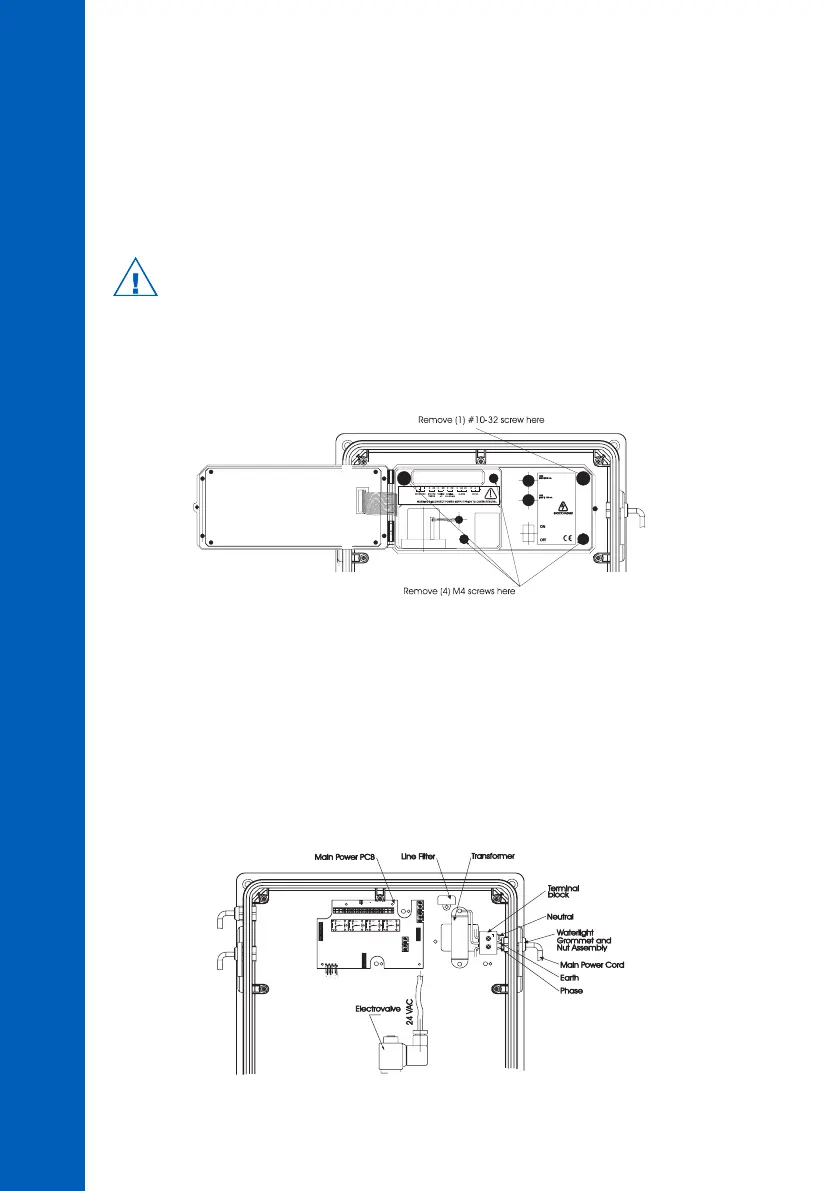

3) Open front panel.
4) Remove the cover screws (Allen head).
5) Do not remove peristaltic pump or motor.
6) Unplug all alarms and recorder jacks.
Feed the power cord through the watertight grommet and tighten the grommet nut. See the picture
below for proper wire connections.
Power Connection
Power connections are made at a terminal block located in the center of the electrical compartment to
the right of the fuses.
Hard wiring with 13 mm (
1
/
2
”) conduit is recommended and usually required by most municipal
electrical codes.
Warning: For PCA310 - PCA340 before connecting the instrument to the line:
1) Check the label near the fuses for proper voltage.
2) Be sure the power cord is not connected to the line.
INITIAL PREPARATION AND INSTALLATION
24
