29
Main panels
Cl panels
pH panels
Temp. panels
ORP panels
CFM
UP
DOWN
CFM
CFM
CFM
ESC ESC ESC ESC
UP/DOWN

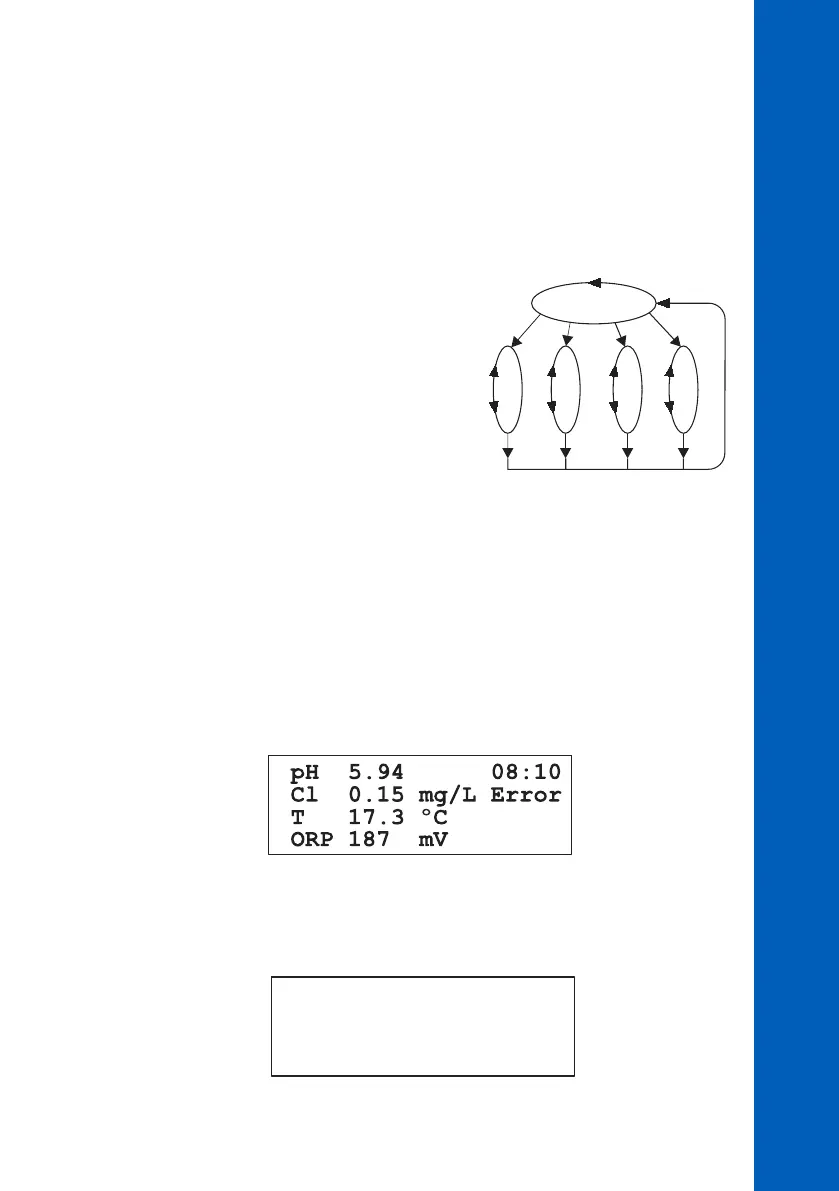

PANELS ORGANIZATION
The PCA310 - PCA340 analyzers provide a friendly interface that display all important parameters of
the analyzer. The appearance of the display could be selected by the user.
The panels are organized in circular loops. PCA330 has a main loop where panels with all measurements
are displayed, chlorine measurement loop, pH measurement loop, temperature measurement loop
and ORP measurement loop where only information
related to the parameter is displayed.
PCA320 and PCA340 has the same structure but
without the ORP measurement panels.
PCA310 has only the chlorine measurement panels.
Pressing up and down arrow keys will move inside
loop in a circular way (after last panel, the first panel
is displayed). Pressing CFM to move from main panels
to measurement panels. Pressing ESC to move from
measurement panels to main panels.
MAIN PANELS
At startup the display shows one of the main panels. This panel contains the chlorine, pH, ORP and
temperature values and the related measuring units. The panel contains also the current time and
the alarm/error status.
Other panels are available by pressing up or down arrow keys. On each of this panels one measurement
is displayed on the left side and the others on the right side.
USER INTERFACE
One row with messages is also displayed.
When the display show one of this panels, pressing CFM, will enter in the panels related to the
parameter displayed in the left side.
08:10
6.29 pH Error
< Low ORP >
Min:4.18 Max:7.00
