6 - Maintenance
128

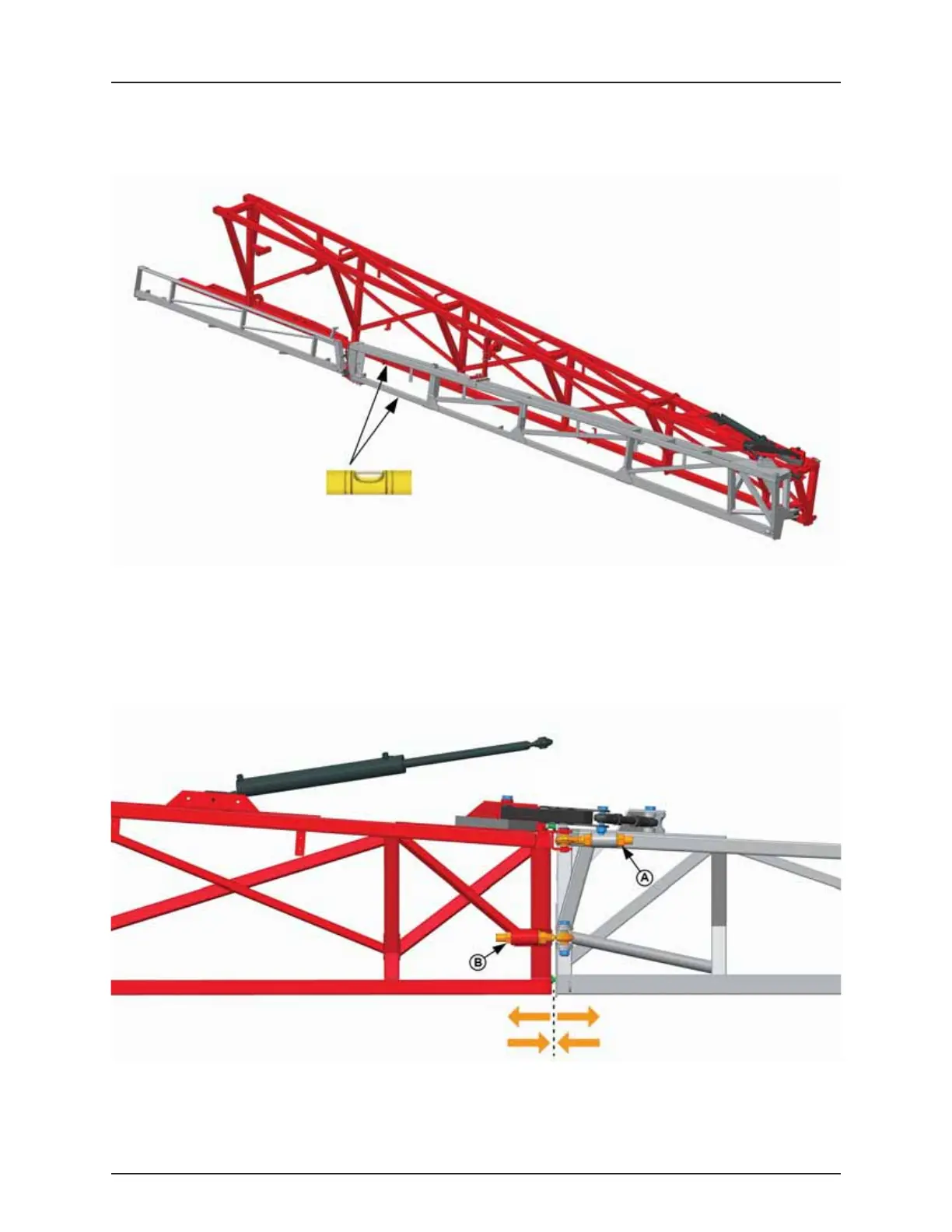

3. Fold the aluminum boom by hand.
Check the horizontal alignment at the base.
4. If the aluminum boom sits too HIGH or too LOW in relation to the steel boom when folded, unfold the aluminum boom
once again.
Keep the horizontal settings, and adjust the M34 ram eyes (A and B) to raise or lower the aluminum boom.
To lower the aluminum boom, adjust A and B outwards the same length, e.g. same number of nut revolutions.
To raise the aluminum boom, adjust A and B inwards the same length.
