6 - Maintenance
129

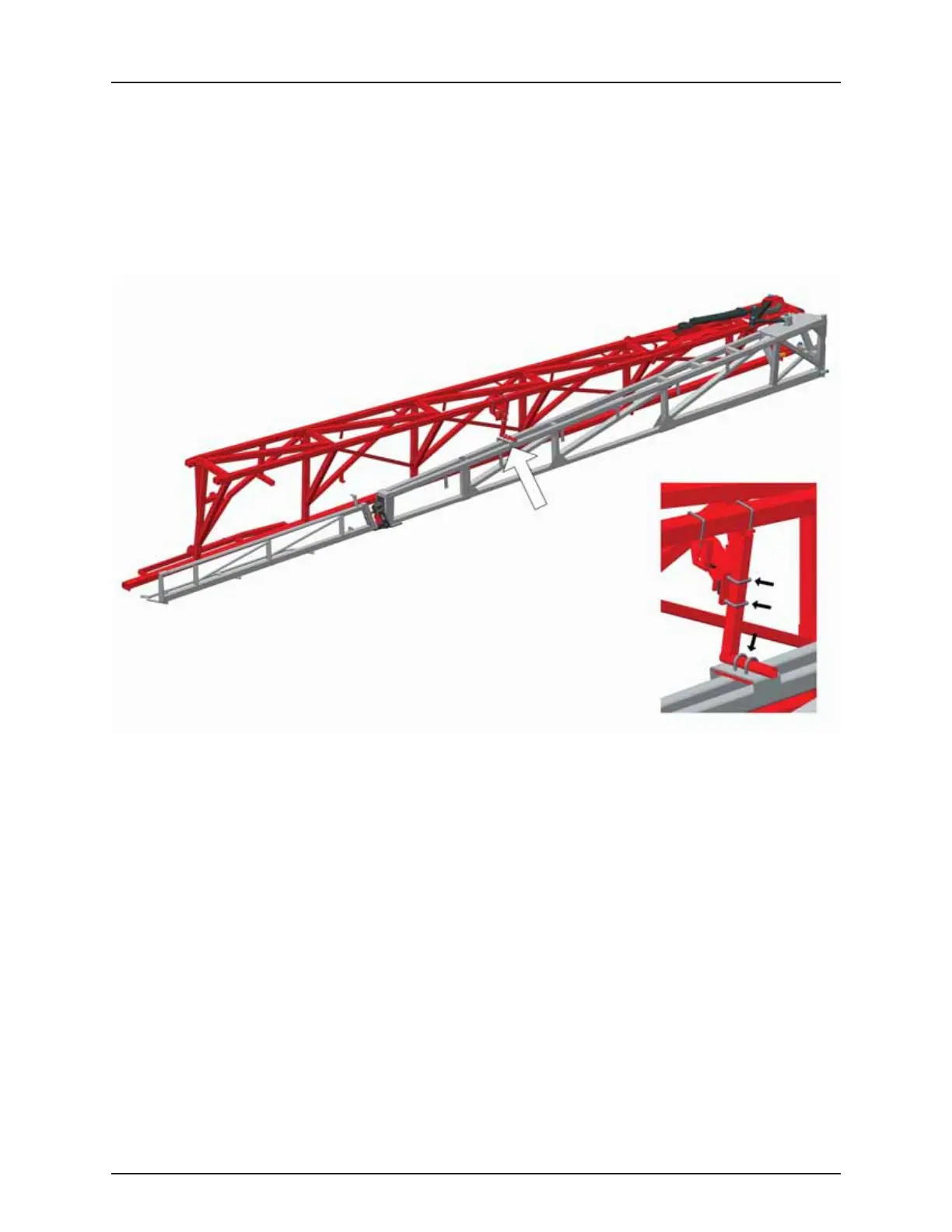

5. Fold the aluminum boom once again and check the alignment with the steel boom.
• If there is a misalignment, unfold the boom and readjust the M34 ram eyes if needed.
6. When the alignment is identical, adjust the bracket to support the aluminum boom during transport.
• Loosen the nuts on the braces to move the bracket up or down. Fit it into the braces on the aluminum boom.
• Tighten the nuts when the bracket is in place.
7. Unfold the boom one last time to tighten the M34 nuts on the double ram eyes.
• Tighten the M34 nuts to 443 Ft/lb (600 Nm). Use an extension on the wrench if necessary.
