6 - Maintenance
130

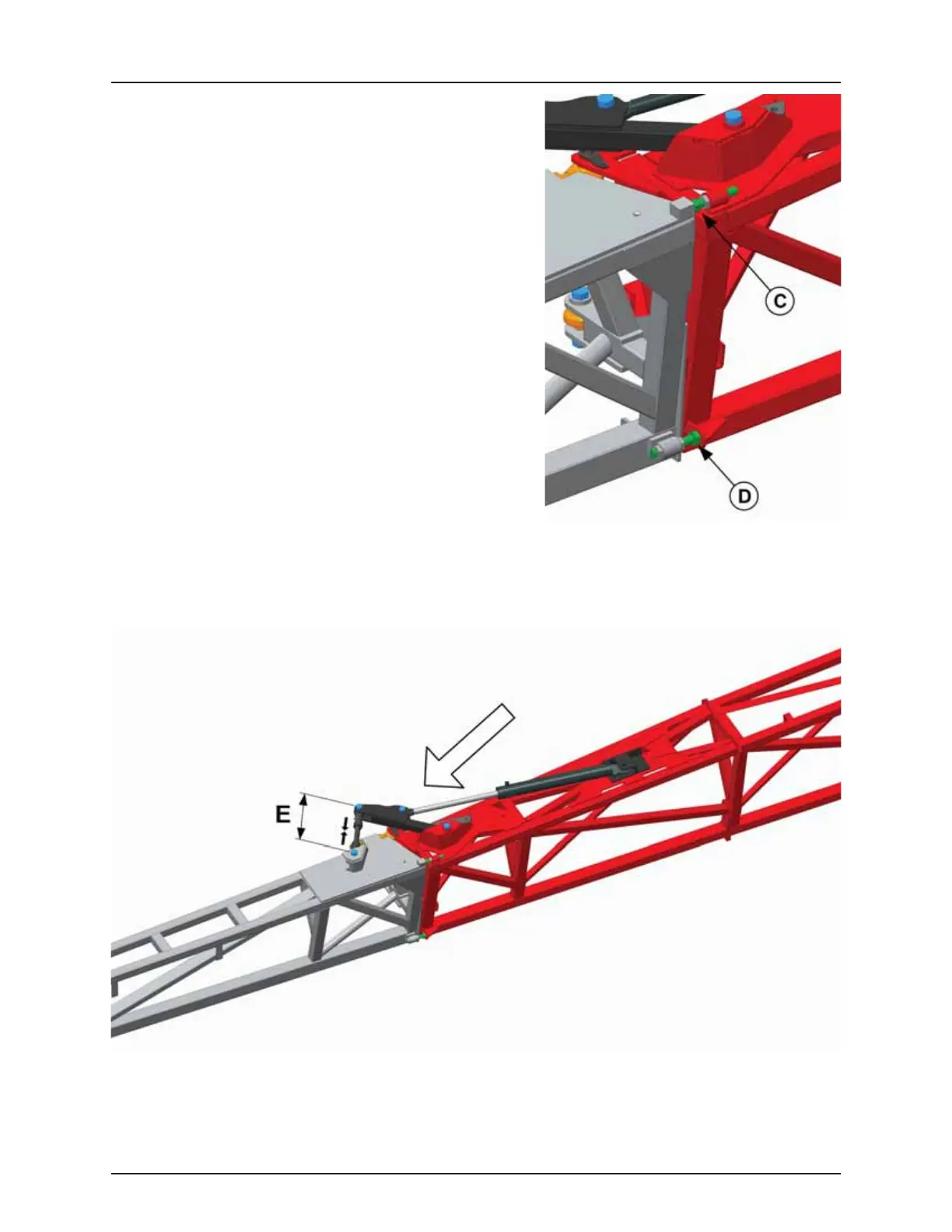

8. Fine tune the stop bolts (C and D) and check the boom alignment.
Stop D should be touching the steel boom.
A gap of 1-2 mm should be present between Stop C and the
aluminum boom.
9. Connect the hydraulic cylinder and tighten the bolt and nut firmly.
10. Minimize the distance E as much as possible by turning the rod on the double ram eye. Loosen the nuts and turn the
rod with a wrench.
