Harman Kardon AVR 1700 Quick Setup Guide

Introduction, Speaker Placement and Connection
AVR
2
Introduction
Thank you for choosing a Harman Kardon product!
This quick-start guide contains all the information you need to connect and set up your
new Harman Kardon audio/video receiver (AVR).
To conserve our natural resources, your AVR does not include a printed owner’s manual.
An owner’s manual containing complete information about operating all of your new
AVR’s features is available at our Web site. Go to www.harmankardon.com and download
the AVR 1700, AVR 170, AVR 170/230C Owner’s Manual.
Place the Receiver
• Place the AVR on a rm and level surface. Be certain that the surface and any mounting
hardware can support the AVR’s weight.
• Provide proper space above and below the AVR for ventilation. Recommended clearance
distances are 30cm above the unit, 30cm behind the unit and 30cm on each side of the unit.
• If you install the AVR in a cabinet or other enclosed area, provide cooling air within the cabinet.
Under some circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas
near heaters or heat registers, or in direct sunlight.
Connections
CAUTION: Before making any connections to the AVR, ensure that the AVR’s AC cord
is unplugged from the receiver and the AC outlet. Making connections with the AVR
plugged in and turned on could damage the speakers.
Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustrations below as a guide
for 5.1-channel systems.
TV
C
SUB
FRFL
SL SR

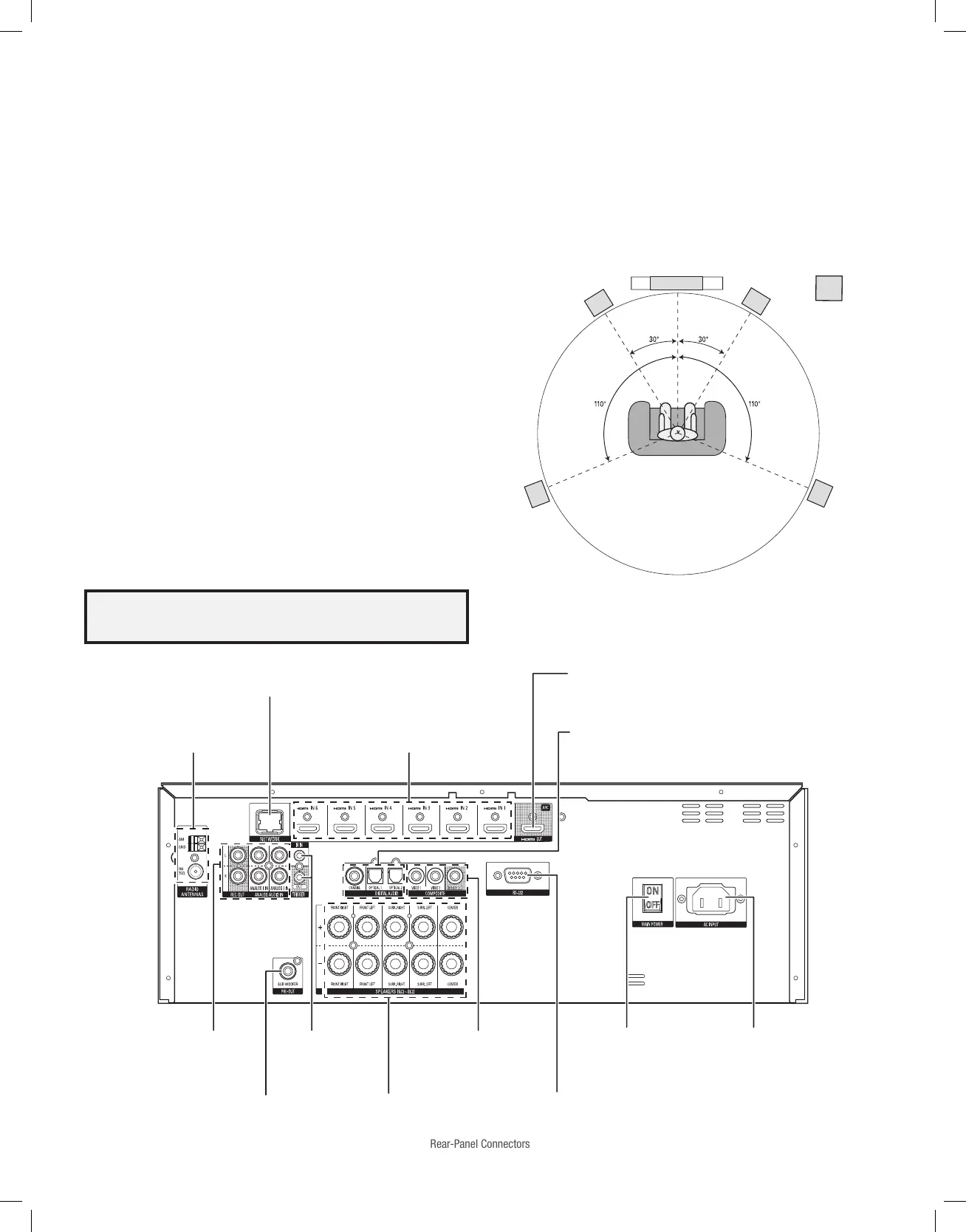

Speaker Positioning for 5.1-Channel Systems
For more detailed speaker placement information, download the complete AVR 1700,
AVR 170, AVR 170/230C Owner’s Manual from www.harmankardon.com.
Rear-Panel Connectors
Radio Antenna
Connectors
Network
Connector
HDMI Input
Connectors
Digital Audio
Input Connectors
HDMI Out
Connector
Analog Audio
Input/Output
Connectors
Composite
Video
Connectors
AC Input
Connector
Main Power
Switch
IR In &
12V Trigger
Connectors
Subwoofer
Connector
Speaker
Connectors
RS-232
Connector

Harman Kardon AVR 1700 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Output impedance	75 Ω
Audio output channels	- channels
Power output per channel (1KHz@8 Ohm)	100 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Number of HDMI outputs	1
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	FM
3D	Yes
Analog signal format system	NTSC
Product color	Black
Audio decoders	Dolby Pro Logic, Dolby Pro Logic II, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	350 mm
Width	440 mm
Height	165 mm
Weight	5800 g
