Using AMX System Recovery
During a normal firmware upgrade, if a Acendo Book panel is unable to boot all the way, AMX System Recovery can be used to try to
reset system data or re-install firmware. To initiate system recovery:
1. Power up the panel while holding the Sleep/Settings button.
2. Release the button 3 seconds after seeing the AMX boot logo, and wait a few seconds for recovery mode to begin.
3. A text screen titled "AMX System Recovery" is displayed, presenting the following options:
Reboot Device
Factory Data Reset
Revert to Factory Firmware
Install Firmware from USB
4. Navigate the menu options by pressing the Sleep/Settings button.
To select an item, press and hold the Sleep/Settings button for 2 or more seconds. Alternatively, if the panel has a USB
keyboard plugged in at bootup, use the Up/Down arrows and Enter keys to navigate the menus.
Select Reboot Device to reboot the panel.
Select Factory Data Reset and then select Yes on the confirmation window to erase all of the user data (settings,
application data, user pages) on the panel.
Select Revert to Factory Firmware and then select Yes on the confirmation window for the system to extract the factory
firmware (this can take a minute) and then automatically initiate a firmware upgrade as usual.
Select Install Firmware from USB for a new menu to come up, where the user can navigate the files on the USB drive.
Selecting the "../" entry will take the user back to the previous directory. Entries with a trailing "/" on the name are
directories, and selecting a directory will bring up a new menu with the contents of that directory shown. All other entries
will be ".kit" f iles. Selecting a KIT file and selecting Yes on the confirmation screen will extract the firmware (this can take
a minute) and then automatically initiate a firmware upgrade as usual.
SYSTEM - Diagnostics

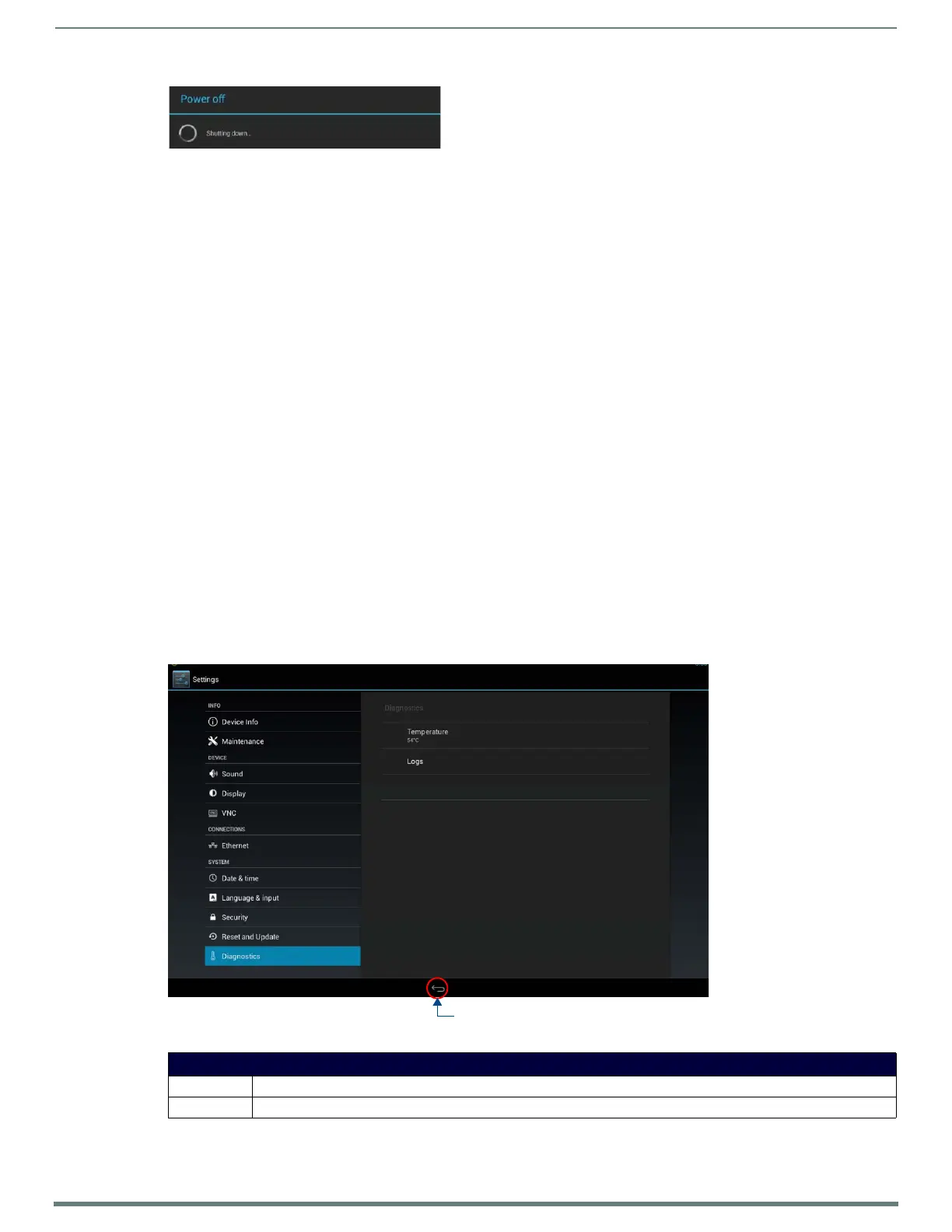

The Diagnostics page (FIG. 128) displays the current processor temperature, provides access to panel logs, and toggles SSH
functionality.
The Logs window chronicles all previous connections between the panel and the network. To access the Logs window, select Logs in
the Diagnostics page.
FIG. 127
Firmware Update - reboot and complete f irmware update
FIG. 128 Diagnostics page
Diagnostics page options
Temperature Displays the current temperature of the panel in Celsius.
Logs Select this option to display the panel logs.
Return icon - press to close the Advanced Settings menu
To Next Page
