CONTROL UNIT
11
6
The wire connected to the volume pot will be reused. Use a tool such as a pair of snips or cutters to remove
the old heatshrink tubes which cover the contacts.
7
Use a soldering iron to melt the solder and separate the wires from the old volume pot. Be very careful when
using a soldering iron.
8
If the exposed conductive wire at the end is less than 5mm, use a tool such as a wire stripper or cutter to cut
the wire insulation back to a workable length. Place new sleeving over the wire before resoldering them to
the pot.
9
Once soldered, cover the bare contacts with the sleeving. If heatshrink is used, apply heat from an
appropriate hot air blower to shrink the sleeving tightly over the contacts.
10
Reassemble the pot to the pot bracket by working in reverse order of these instructions.
Refer to the POT VOLUME ADJUSTMENT section of this manual.
FIG. 11-2d
1
Turn o the power and remove the Control Unit (see 11-1).
2
Locate the X axis volume - positioned at the
rear base of the controller.
4
Loosen the single hexagonal grub scew on the volume pot gear and remove the gear.
5
Remove the nut which secures the volume pot to the volume pot bracket and seperate.
3
Unscrew the (2) hex nut from the volume pot
bracket. Disconnect the harness and remove.

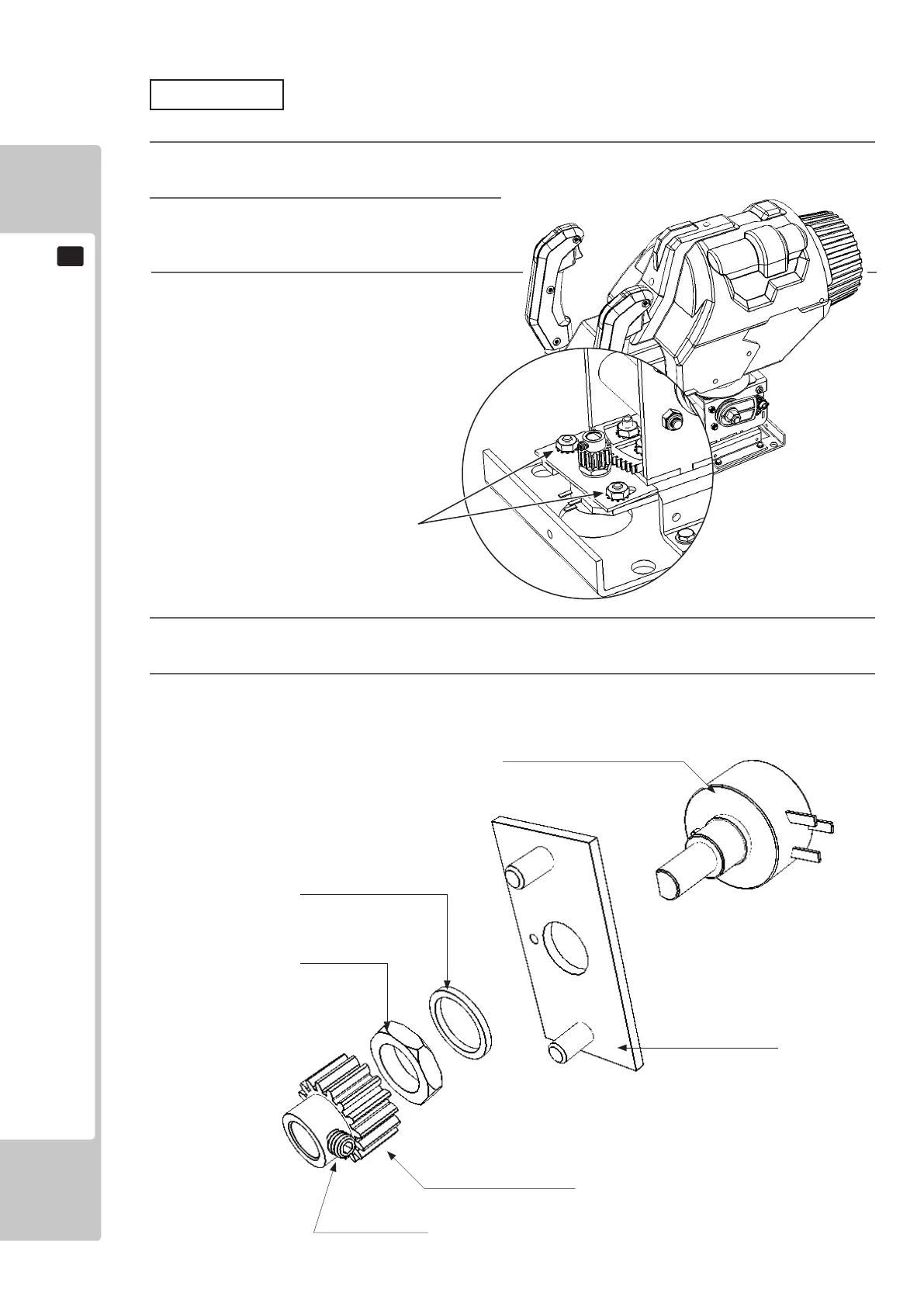

FIG. 11-2c
VOLUME POT
VOLUME POT BKT
VOLUME POT NUT
VOLUME POT WSHR
VOLUME POT GEAR
HEX SOCKET SCREW
Imperial Hex Nut.
To Next Page
