Incorrect Mounting
Sultan Acoustic Wave Series

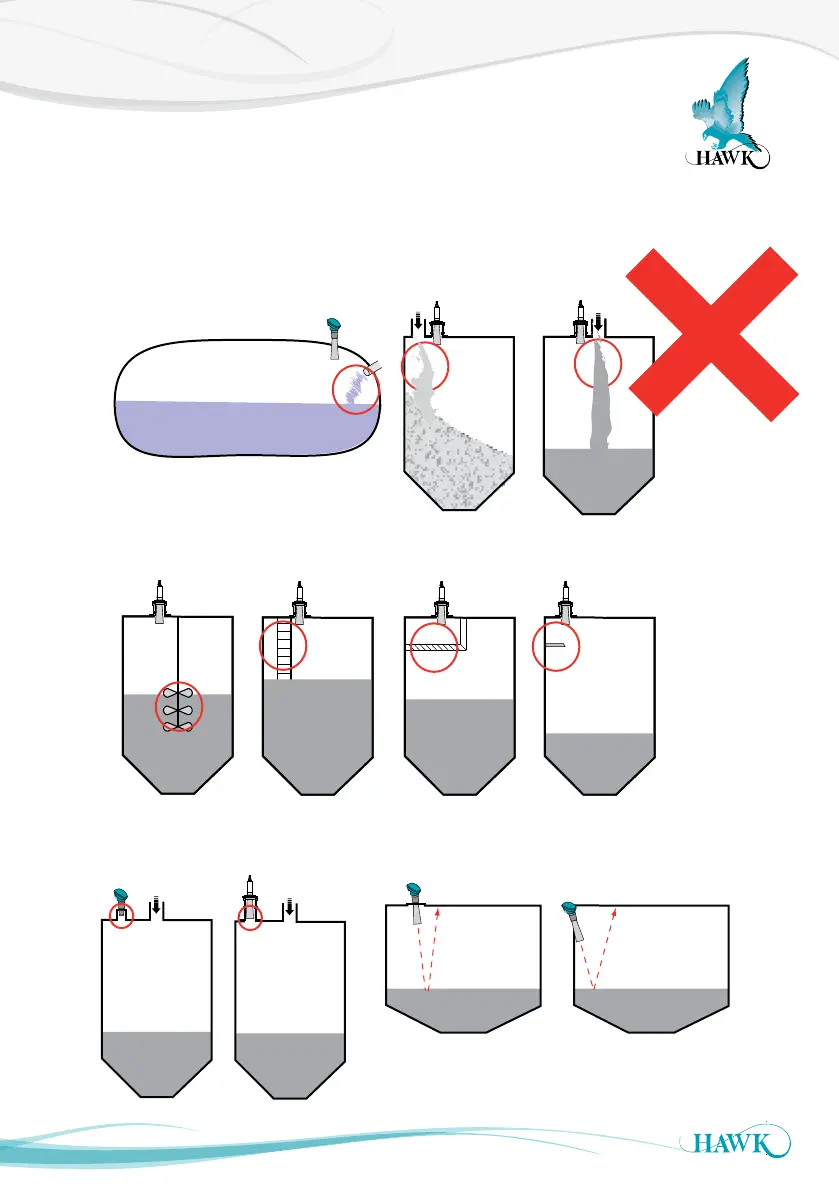

These are examples of common INCORRECT mountings which can prevent the unit from
operating correctly.
Do NOT mount near infeed
POWDER
Mount away
from infeed
DUAL OUTFEED
Use two transducer and
select sequence option to
avoid cross-talk.
Conical Shape Vessels
Horizontal Cylindrical Tanks
Stockpiles, Stackers, Reclaimers
Do NOT mount cone or transducer
face above roofline
Do NOT mount over or adjacent to any obstacles
Do NOT mount on angle
in liquid applications
