DeviceNet - Setup & Parameters / Wiring
Sultan Acoustic Wave Series
38
Setting the Baud Rate and the
DeviceNet Address
The DeviceNet factory default of Baud Rate and
FBus Address are 125kbps and 63 in a Sultan unit
with. To modify these values follow the instructions
below.
1. Go to the ‘Output Ad’ menu
2. Use the Up and Down push buttons to reach the
CommType parameter
3. Make sure that the CommType is set to
‘DeviceNet’
4. Press the CAL button twice
5. DeviceID will be displayed - this ID is for Modbus
networking, do not adjust.
6. Use the Down push button to reach the
BaudRate parameter
7. The default value for the BaudRate is 125kpbs.
Press CAL button and use the Up and Down push
buttons to modify this value
8. Press CAL button when finished
9. Use the Down push button to reach the FBusAdds.
The default value of the FieldBus Address is 63.
Press CAL button and use the Up and Down push
buttons to modify this value
10. Press CAL button again when finished
11. Press RUN to save and several times again to
return the unit to operating mode.
Output Data
Profibus/DeviceNet now transmit 18 bytes/9 words,
description of the words is as follows (For firmware
version 5.54 and above).
1. Displayed Distance
(Space Distance is the Primary Variable)
2. Percentage (Percent of Range)
3. Hi Level (Upper Range)
4. Low Level (Lower Range)
5. Status Flags
Bit0 = Echo was received inside the span.
Bit1 = Echo is Confirmed.
Bit3 = Searching is searching for an Echo.
BitF = Unit has Failed to detect an Echo.
6. Displayed Distance2 (Second Variable)*
7. Percentage2 (Second Percent of Range)*
*Used for Differential output on a Sultan
Integral
Bit F Bit E Bit 3 Bit 1 Bit 0
Failed ~~~~~ Search 0 Echo Cfm : 1 = , True, 0 = False Echo R : 1 = , True, 0 = False

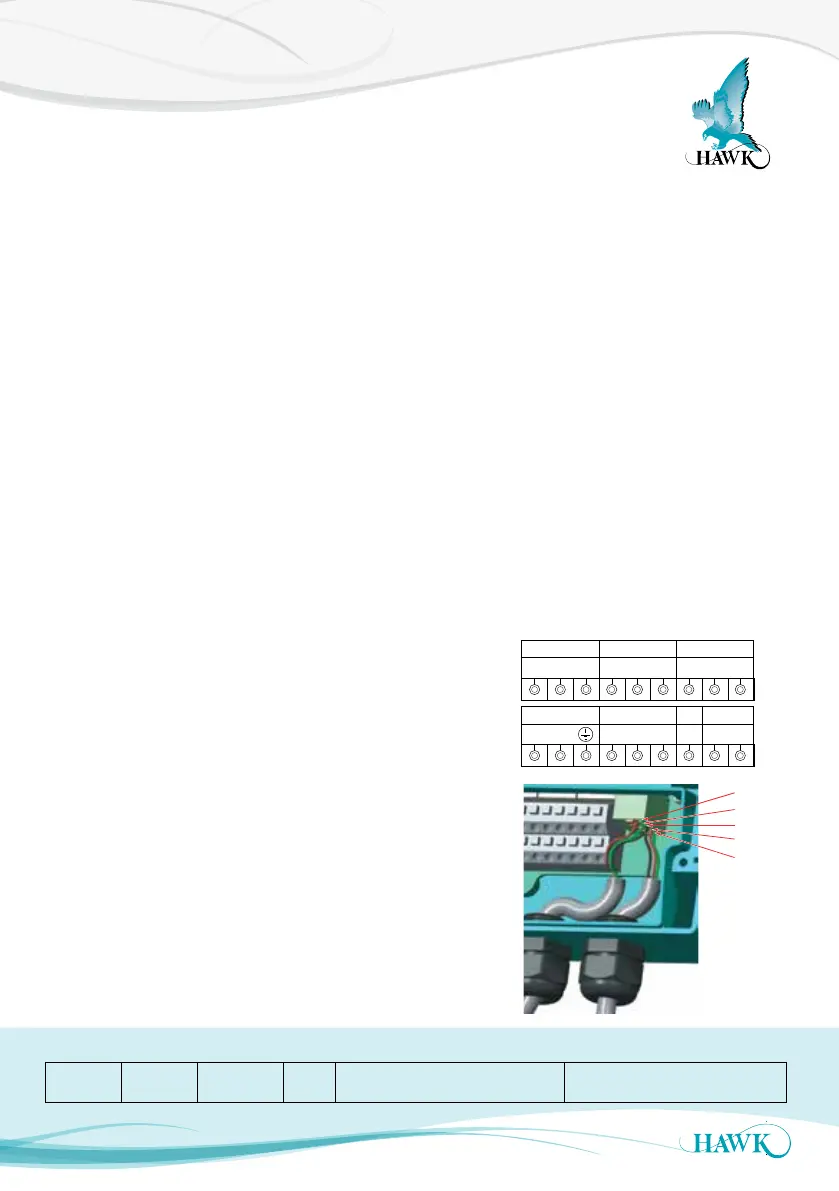

AC-IN DEVNET DC-IN
TEST
24V+shld GND
5. V+
4. CAN_H
3. SHEILD
2. CAN_L
1. V-
A
B
shld
NC
COM
NO
A
B
shld
LI N
-
+
AC-IN DEVNET DC-IN
TEST
DEVNET COMMS RL1
24V+shld GND
5. V+
4. CAN_H
3. SHEILD
2. CAN_L
1. V-
A
B
shld
NC
COM
NO
A
B
shld
LI N
-
+
Remote
