Hawk Sultan - Installation Examples; Mounting Configurations

16

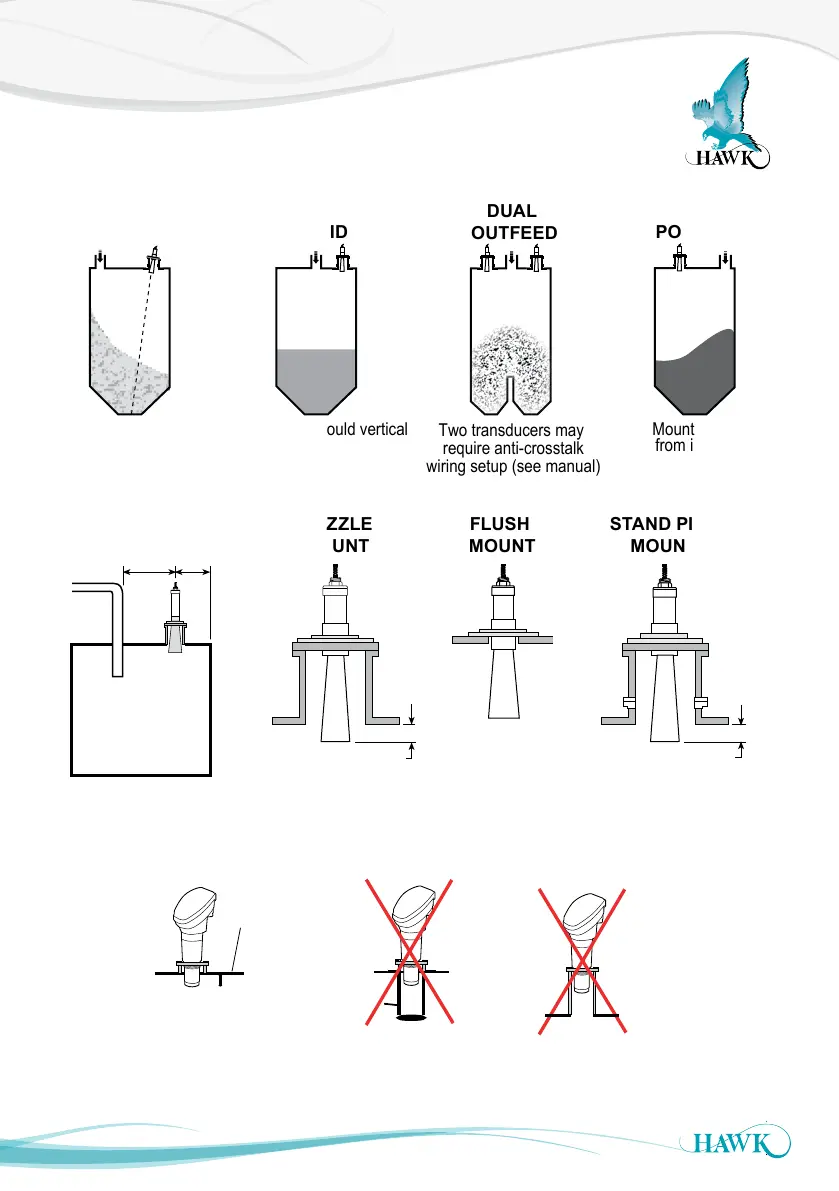

Installation Examples
Sultan Acoustic Wave Series
SOLID
(Granular)
FLUSH
MOUNT
NOZZLE
MOUNT
STAND PIPE
MOUNT
Aim transducer at
point of outfeed.
POWDER
Mount away
from infeed
LIQUID
Transducer should vertical
DUAL
OUTFEED
Two transducers may
require anti-crosstalk
wiring setup (see manual)
Minimum
50mm
MOUNTING
POSITION
Vessel
Infed
Pipe
1/3
2/3
Minimum
50mm
2" VERSION
min 20mm
inside tank
Intrusive
pipe
Correct
Incorrect
Vessel
roof
Threaded mounting should only be
used where a flange/cone mounting
is impossible.
Hawk recommends & supplies
focaliser cones for all transducers.
Incorrect
Face must not be
inside mounting
