Hawk Sultan - Profibus Setup and Parameters; Profibus DP Address Configuration

Probus - Setup & Parameters
Sultan Acoustic Wave Series
39
Setting the Probus DP Address
Factory defaults of FBusAdds is 126 in a Sultan unit
with Profibus CommType. To modify this value follow
the instruction below:
1. Go to the ‘Output Ad’ menu
2. Use the Up and Down push buttons to reach the
CommType parameter
3. Make sure that the CommType is set to ‘Profibus’
4. Press the CAL button twice
5. DeviceID will be displayed - this ID is for Modbus
networking, do not adjust.
6. Use the Down push button to view the BaudRate
parameter. The value for the BaudRate is selected
automatically and can not be modified.
8. Use the Down push button to reach the FBusAdds.
The default value of the FieldBus Address is 126.
Press CAL button and use the Up and Down push
buttons to modify this value.
9. Press CAL button again when finish.
10. Press RUN several times to return the unit to
operating mode.
Output Data
DeviceNet now transmits 18 bytes/9 words,
description of the words is as follows (For firmware
version 5.54 and above)
1. Displayed Distance
(Space Distance is the Primary Variable)
2. Percentage (Percent of Range)
3. Hi Level (Upper Range)
4. Low Level (Lower Range)
5. Status Flags
Bit0 = Echo was received inside the span.
Bit1 = Echo is Confirmed.
Bit3 = Searching is searching for an Echo.
BitF = Unit has Failed to detect an Echo.
6. Displayed Distance2 (Second Variable)*
7. Percentage2 (Second Percent of Range)*
*Used for Differential output

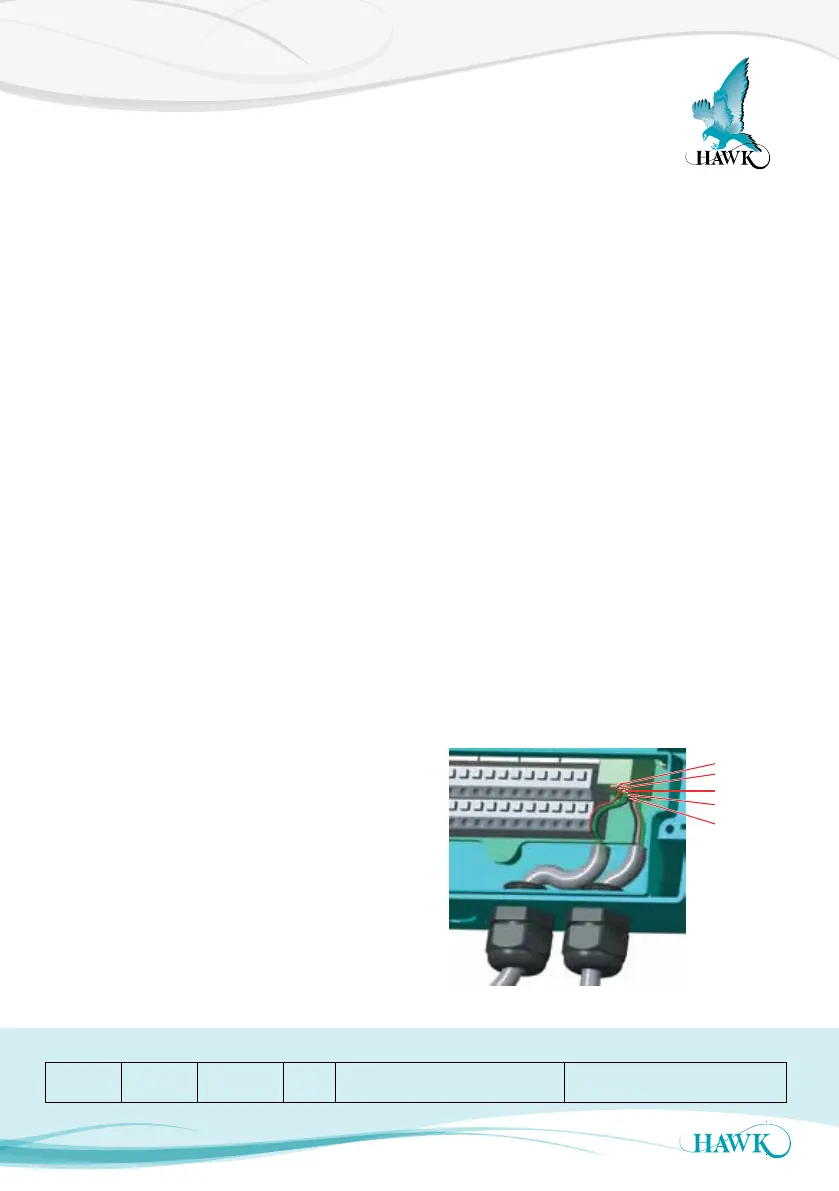

Wiring
5. B IN
4. A IN
3. SHEILD
2. B OUT
1. A OUT
Bit F Bit E Bit 3 Bit 1 Bit 0
Failed ~~~~~ Search 0 Echo Cfm : 1 = , True, 0 = False Echo R : 1 = , True, 0 = False
