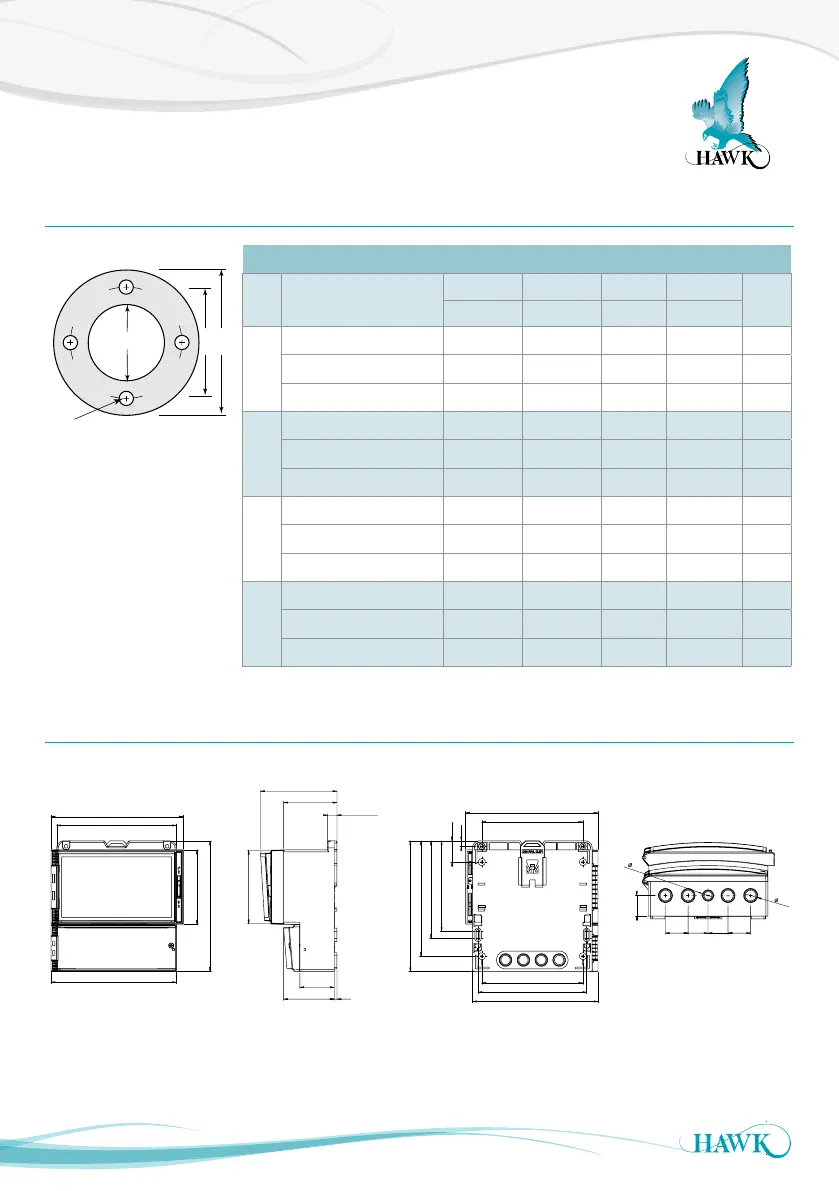

Hawk Sultan - Flange Dimensions; Standard Flange Specifications

Dimensions
Sultan Acoustic Wave Series
19
Flanges
FLANGE TYPE:
A = ANSI Flange
J = JIS Flange
D = DIN Flange
H
E F
G
Note: Other flange sizes available upon request.
STANDARD ANSI/DIN/JIS FLANGE DIMENSIONS
FLANGE
TYPE
E (PCD) F (OD) G (ID) H (Hole)
mm in. mm in. mm in. mm in.
FA4 ANSI class 150 190.5 7.5 229 9.0 100 4 19 0.75
FD4
DIN100 PN10/16 180 7.1 220 8.7 100 4 18 0.71
FJ4
JIS B2220-1984 10kg 175 6.9 210 8.4 100 4 19 0.75
FA8
ANSI class 150 298.5 11.8 343 13.5 200 8 22 0.85
FD8
DIN200 PN10 295 11.6 340 13.4 200 8 22 0.85
FJ8
JIS B2220-1984 10kg 290 11.4 330 13.0 200 8 19 0.91
FA10
ANSI class 150 362 14.3 406 16.0 250 10 25 1.02
FD10
DIN250 PN10 350 13.7 395 16.0 250 10 23 0.85
FJ10
JIS B2220-1984 10kg 355 14.0 400 15.7 250 10 25 0.99
SIZE
4”
8”
10”
6”
FA6 ANSI class 150
FD6 DIN150 PN10
FJ6 JIS B2220-1984 10kg
241.5 9.5
240 9.4
240 9.4
279 11.0
285 11.2
280 11.0
150 6
150 6
150 6
22 0.87
23 0.91
23 0.91
No.
Holes
8
8
8
8
8
8
8
8
12
12
12
12
Standard ANSI/DN/JIS Flange Dimensions
Size Flange Type
E (PCD) F (OD) G (ID) H (Hole)
No.
Holes
mm in. mm in. mm in. mm in.
4”
FA4 ANSI class 150
190.5 7.5 229 9.0 100 4 19 0.75 8
FD4 DIN100 PN10/16 18 0 7.1 220 8.7 100 4 18 0.71 8
FJ4 JIS B2220-1984 10kg 175 6.9 210 8.4 100 4 19 0.75 8
6”
FA6 ANSI class 150 241.5 9.5 279 11.0 150 6 22 0.87 8
FD6 DIN150 PN10 240 9.4 285 11.2 150 6 23 0.91 8
FJ6 JIS B2220-1984 10kg 240 9.4 280 11.0 150 6 23 0.91 8
8”
FA8 ANSI class 150 298.5 11.8 343 13.5 200 8 22 0.85 8
FD8 DIN200 PN10 295 11.6 340 13.4 200 8 22 0.85 8
FJ8 JIS B2220-1984 10kg 290 11.4 330 13.0 200 8 19 0.91 12
10”
FA10 ANSI class 150 362 14.3 406 16.0 250 10 25 1.02 12
FD10 DIN200 PN10 350 13.7 395 16.0 250 10 23 0.85 12
FJ10 JIS B2220-1984 10kg 355 14.0 400 15.7 250 10 25 0.99 12
Remote Amplier
14 mm (0.6”)
74 mm (2.9”)
78 mm (3.1”)
107 mm (4.2”)
111.5 mm (4.4”)
4 mm (0.2”)
50 mm (2”)
131.5 mm (5.2”)
7.5 mm (0.3”)
192.5 mm (7.6”)
141.5 mm (5.6”)
190 mm (7.5”)
182.5 mm (7.2”)
147 mm (5.8”)
167.5 mm (6.6”)
147 mm (5.8”)
30.7 mm (1.2”)
158 mm (6.2”)
108 mm (4.3”)
190 mm (7.5”)
174 mm (6.9”)
192.5 mm (7.6”)
182.5 mm (7.2”)
30.0
20
.
2
33.029.029.033.0
1
6
.
2
