Hawk Sultan - Minimum Measurement Range; Transducer Frequency Ranges

Minimum Measurement Range
Sultan Acoustic Wave Series
20

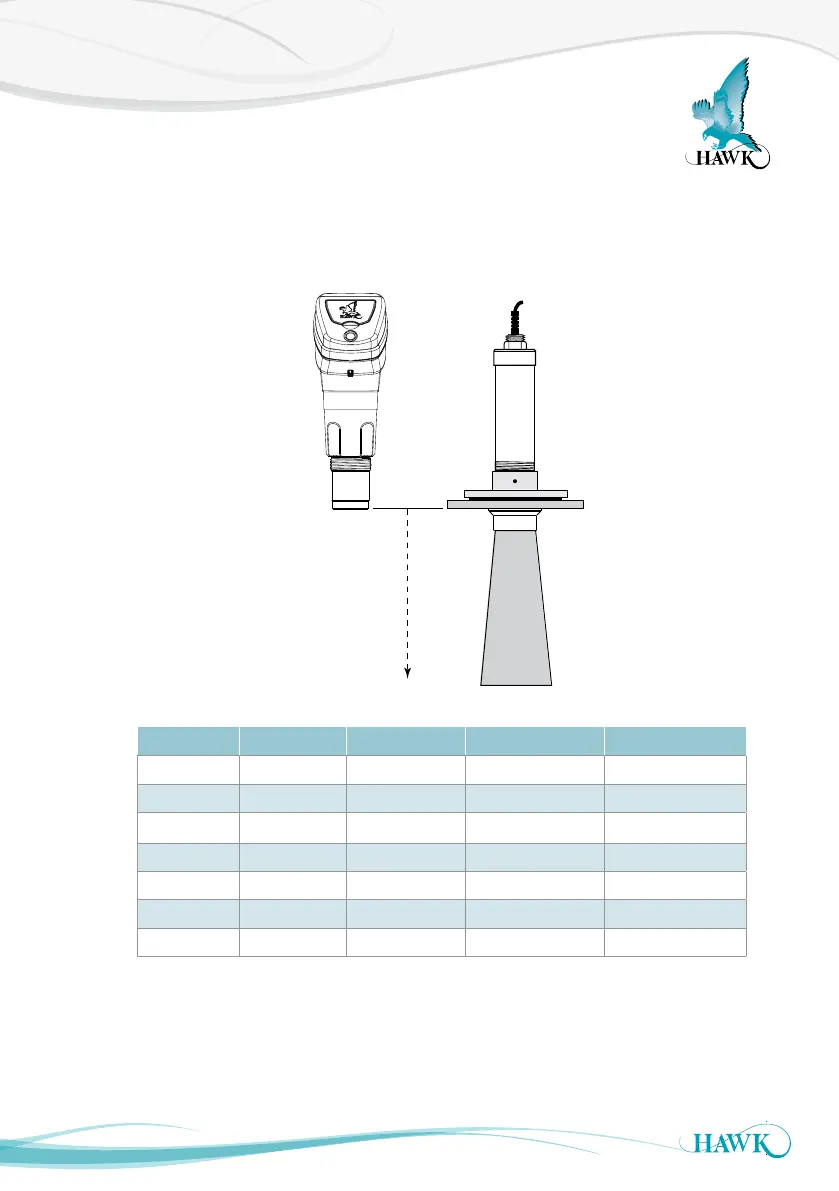

Each Transducer frequency has a different Blanking distance and recommended minimum distance (or high
level) between the sensor face and measured product. This distance is measured from the sensor face or the
bottom tip of flange down depending on model.
Sensor Face Flange
Always use conservative nominated distances if possible
Part No. Frequency Minimum Nominal Conservative
AWRT50 50kHz 0.25m (10") 0.3m (1ft) 0.35m (1.2ft)
AWRT40 40kHz 0.3m (1ft) 0.35m (1.2ft) 0.4m (1.3ft)
AWRT30 30kHz 0.35m (1.2ft) 0.4m (1.3ft) 0.5m (1.6ft)
AWRT20 20kHz 0.45m (1.5ft) 0.6m (2ft) 0.7m (2.2ft)
AWRT15 15kHz 0.6m (2ft) 0.7m (2.2ft) 1.0m (3.2ft)
AWRT10 10kHz 0.75m (2.5ft) 1.1m (3.6ft) 1.3m (4.2ft)
AWRT05 5kHz 1.0m (3.2ft) 1.5m (4.9ft) 1.8m (5.9ft)
