Configuration
28 A01185_11_X00_00 HBM: public CANHEAD
CAUTION
The CB1010 base module requires a CA1030 amplifier module of hardware
revision 1.20 or higher to be used.
6.4 Amplifier module
The CA1030 amplifier module is universal, that is to say, it can be plugged into
any base module (CB1010, CB1014, CB1015, CB1016). The measuring point
assignment within the evaluation is retained because all measuring point spe
cific data is stored in the base module.
The connection from the amplifier module to the base module is established by
a 64‐pin VG strip DIN61412.

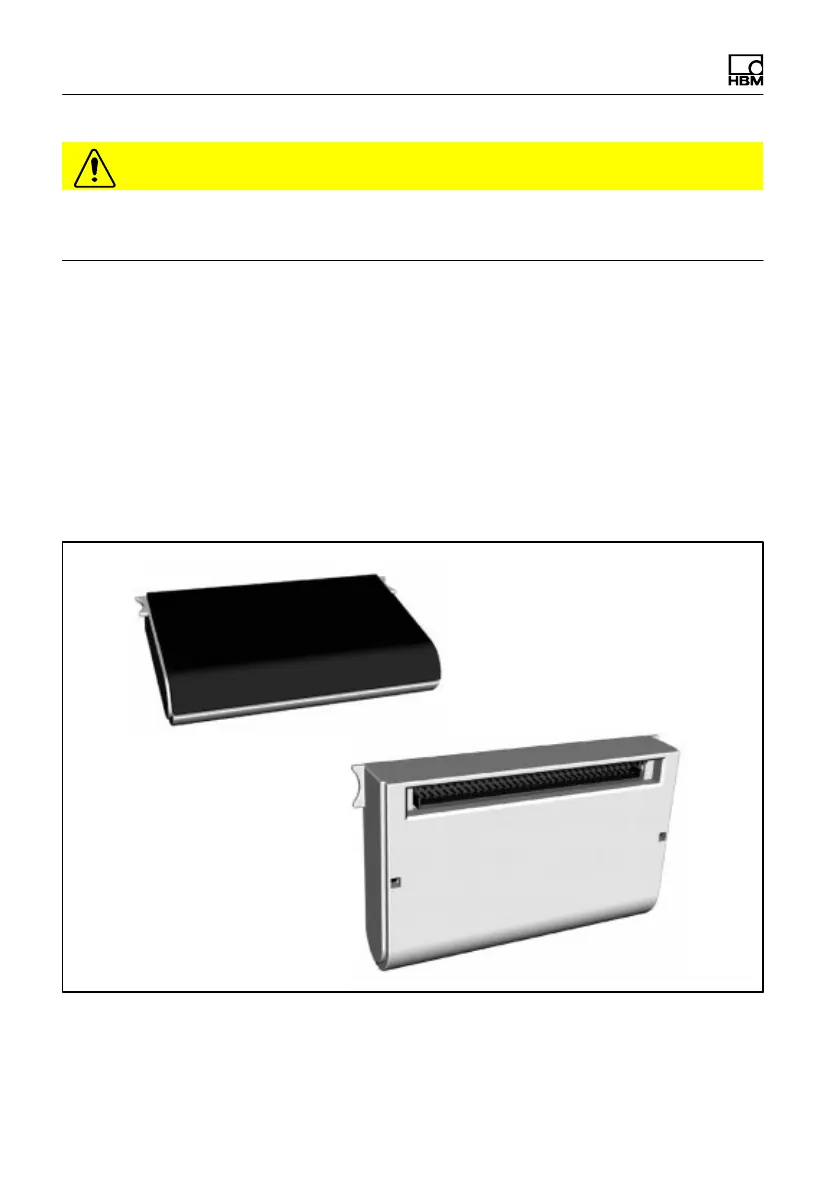

Fig. 6.6 VG strip on the underside of the amplifier module
