Connection
CANHEAD A01185_11_X00_00 HBM: public 39
7.2 Connecting the module CB1016
With the CB1016 base module (for strain gage quarter bridges in four‐wire cir
cuit) the strain gage bridges are connected through shielded RJ45 sockets.
CAUTION
The specifications relative to EMC properties apply only if shielded connection
cables and shielded plugs are used. For this reason, we advise against using
RJ11 plugs, that are electromechanically compatible, instead of shielded RJ45
plugs.
7.2.1 Pin assignment CB1016

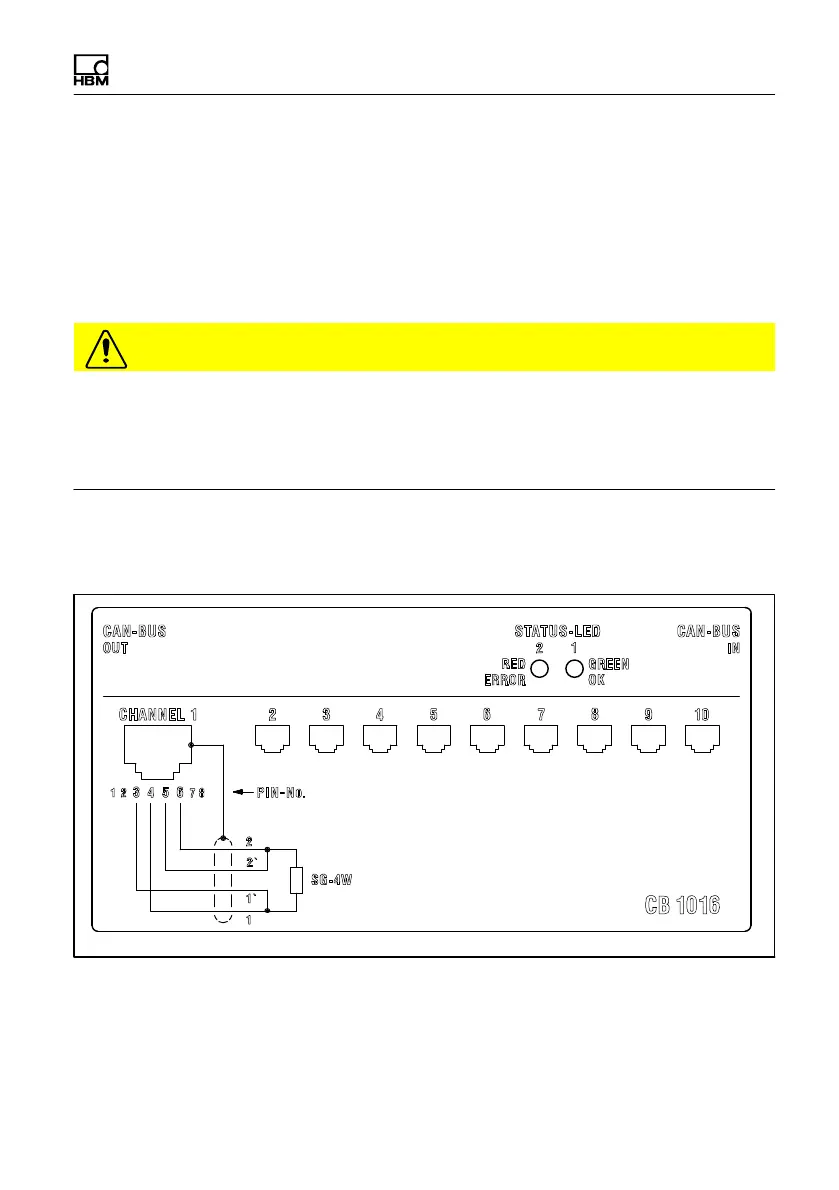

Fig. 7.5 CB1016 assignment (four‐wire circuit)
