Connection
40 A01185_11_X00_00 HBM: public CANHEAD
7.3 Connecting the module CB1010
The CB1010 base module (for strain‐gage half and full bridges and DC voltage
sources) enables strain gage bridges or transducers to be connected through
shielded RJ45 connection sockets.
CAUTION
The CB1010 base module requires a CA1030 amplifier module of hardware
revision 1.20 or higher to be used.
7.3.1 Pin assignment CB1010

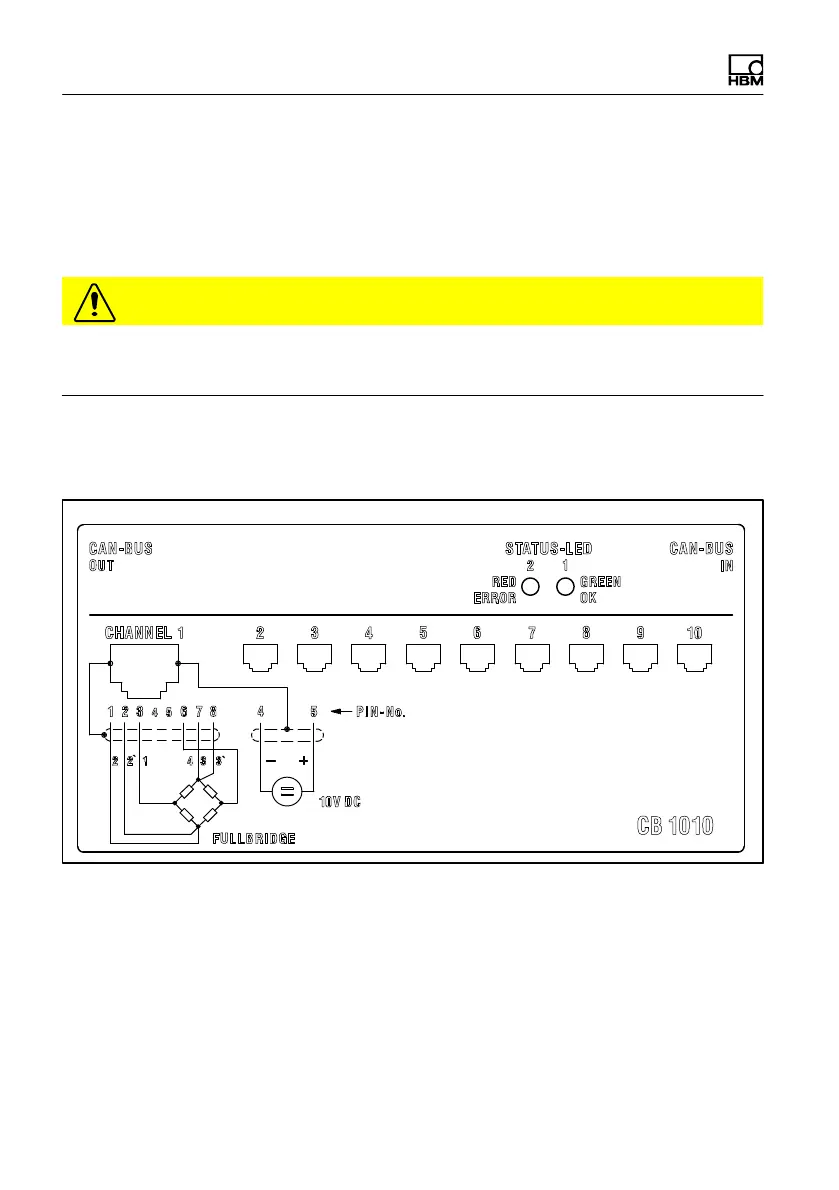

Fig. 7.6 Full bridge and DC connector assignment
In a half-bridge configuration the same assignment applies as in a full-bridge
configuration, though wire 4 is omitted, meaning pin 6 is disabled.
