9 Connection using CANHEADdirect
Using the CANHEADdirect USB interface module, up to 5 CANHEAD modules
can be directly (without ML74B) connected to a PC.
CANHEADdirect offers the same functionality as ML74B.
CANHEADdirect does not support TEDS
NTX001
Mains
max. 5 CANHEAD modules
CANHEADdirect
CANHEAD measuring point:
e.g.strain gauge
Termination resistor

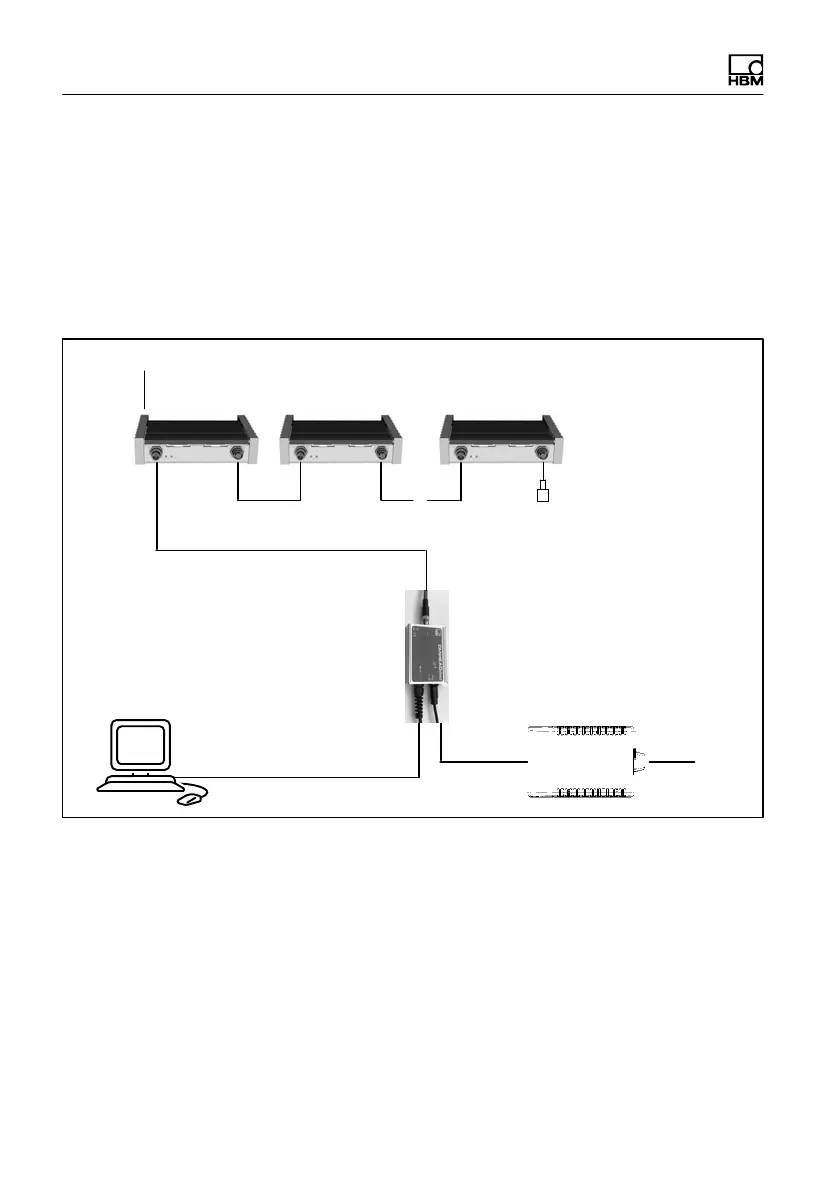

Fig. 9.1 Directly connecting CANHEAD modules to a PC
If the total line length exceeds 30 m, the grounding terminal on the CANHEAD
direct housing needs to be connected to Ground (fast on; >1 mm
2
).
9.1 How many modules are possible at what cable length?
See chapter 8.1 for detailed description.
