HBM PX455 - Digital Inputs; Digital Outputs

Electrical connections PMX
110 A4354-2.2 HBM: public PMX
8.5.1.2 Digital inputs / digital outputs
Digital Out 2
IN 1
IN 2
+10...30 VDC
GND
Cable shield
Digital Out 1
10 - 30 VDC
Digital Out 4
Digital Out 5
Digital Out 6
Digital Out 7
Digital Out 8
Cable shield
Digital Out 3
Digital IN
1)
Digital OUT
2)

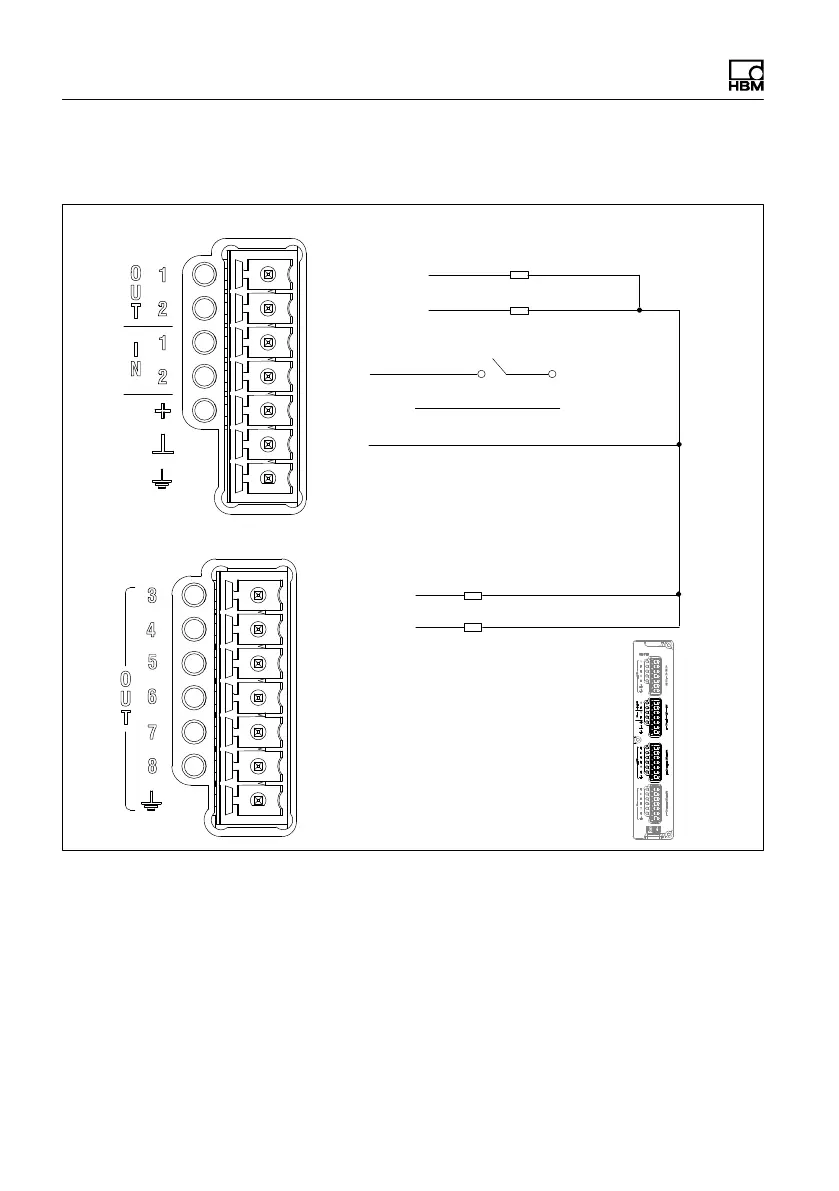

Fig. 8.28 PX878 pin assignment digital input/output
(terminals 2 and 3)
1)
External voltage or signal from external source
2)
External voltage supply for digital OUT, e.g. for the PMX voltage supply socket (POWER)
