Electrical connections PMX
96 A4354-2.2 HBM: public PMX
8.4.4.8 Inductive encoder or pulse encoder
(passive only)
Do not carry any further signals in the
connection cable
Passive encoder /
pulse encoder
Do not connect with voltage source!
1
2
TEDS
module
(optional)
*) Additional frequency encoders can be connected to
terminals 1 and 2 and frequencies measured.
*)

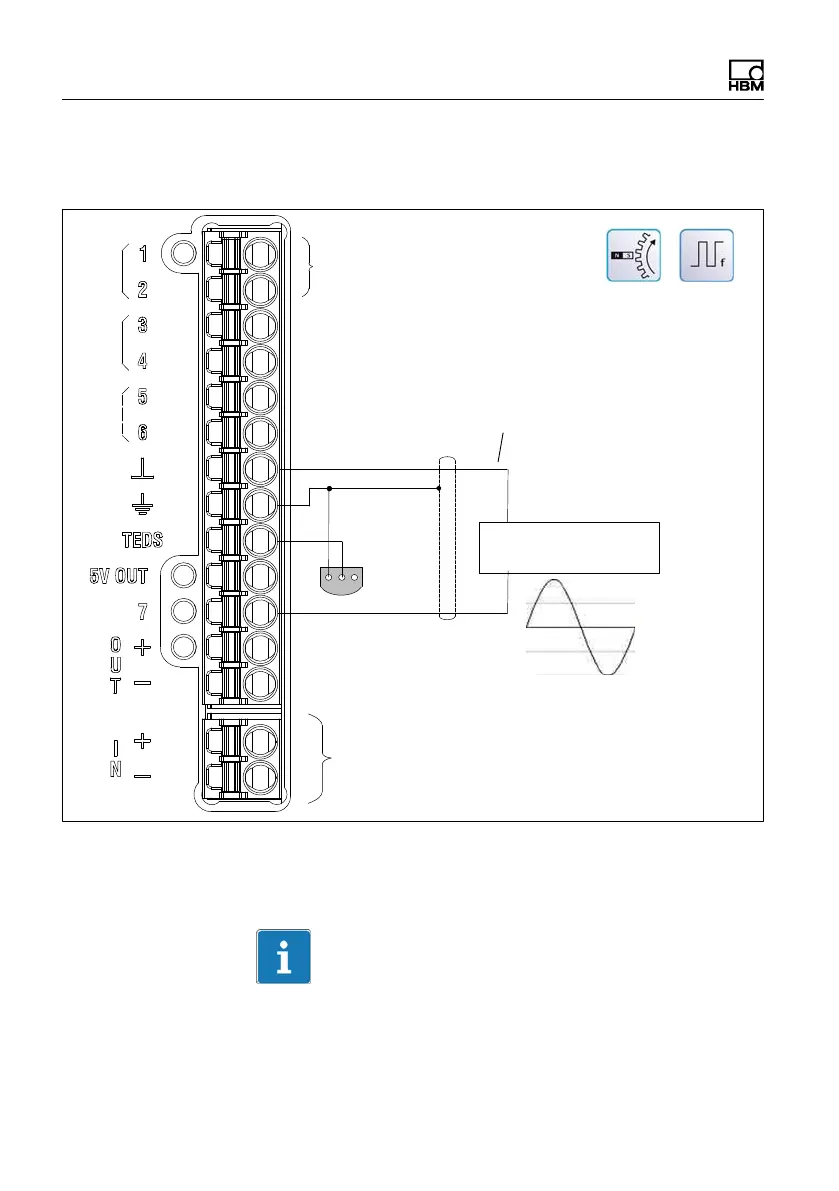

Fig. 8.19 PX460 pin assignment encoder and pulse encoder,
differential
Possible channel setting via web server:
Transducer: Frequency (inductive)
Important
This signal input is only designed for passive pulse
encoders.
