488 A4354-2.2 HBM: public PMX

22.1.1 Measuring channels

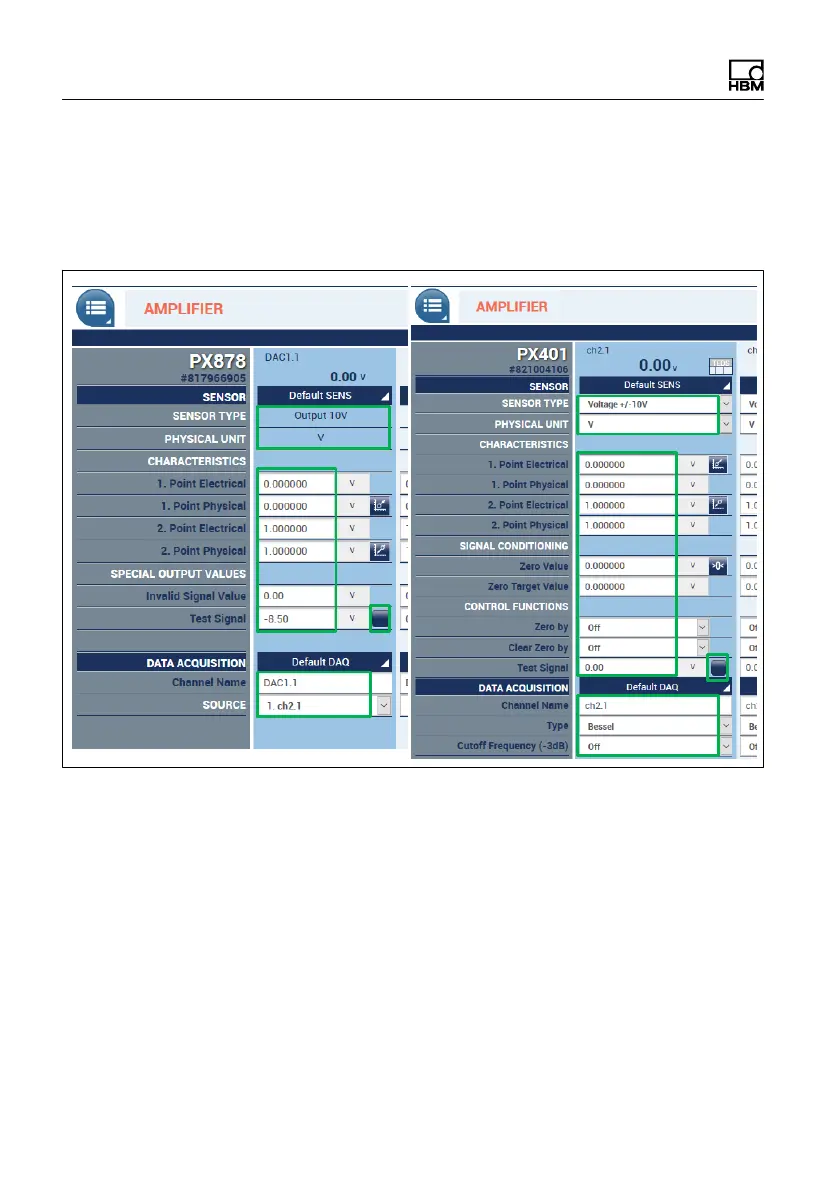

The OD contains virtually all parameters from the ampli

fier dialog.
