CODESYS‐V3 Soft PLC (WGX001 only)
348 A4354-2.2 HBM: public PMX
18.8 Cyclic data

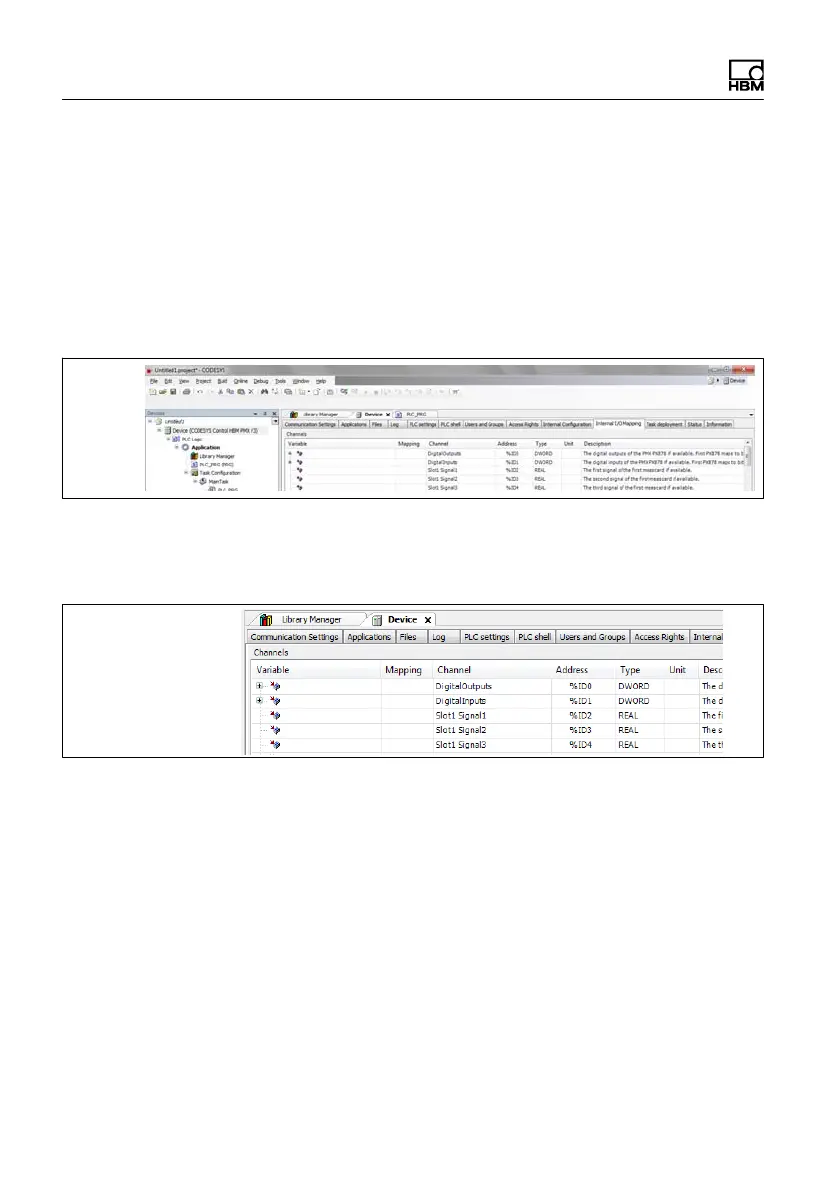

The data exchanged cyclically with the PMX firmware are
displayed as follows:
S Double-click on the left in the project tree "CODESYS
Control HBM PMX V3".
Select the tab "Internal I/O Mapping".
S To connect with an existing program variable of the
same type, double-click in the "Variable" column in the
required cell.
