Electrical connections PMX
PMX A4354-2.2 HBM: public 89
8.4.4.1 Voltage supply for signal transmitter and
transducer up to 24 VDC nominal (rated)
voltage.
max. 24 VDC
Nominal (rated) voltage
 24 VDC
looped through, protected, 2 A max.
+
-
max.. ± 12 V
max. ± 12 V
max. ± 12 V
Sensor supply
Sensor
input signals
Feed sensor supply
NOTE
The input signals fed from the
sensor into the PX460 must not
exceed max. ±12 V. Otherwise
the measurement inputs of the
PX460 may be destroyed.

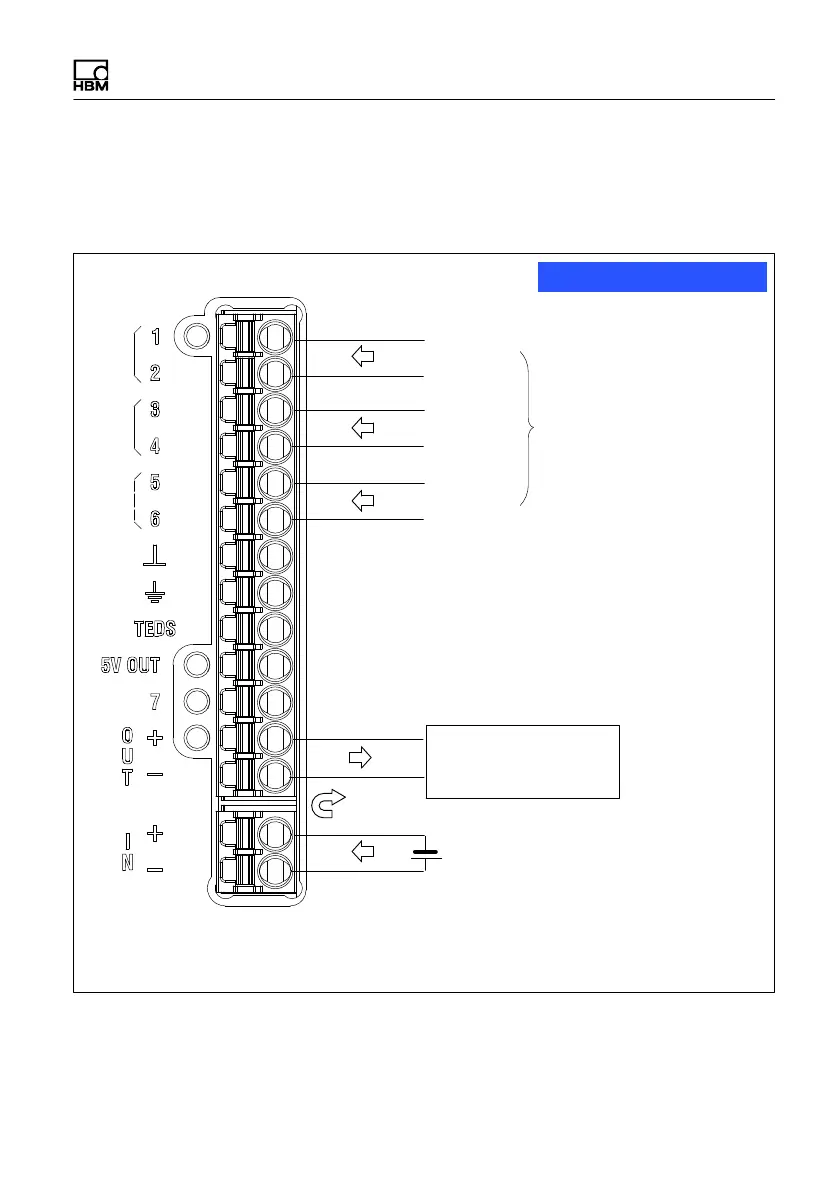

Fig. 8.12 PX460 Voltage supply options up to 24 VDC
nominal (rated) voltage
