HBM PX455 - Support Rail Mounting

Mounting/Dismounting/Replacing
44 A4354-2.2 HBM: public PMX
7.2 Support rail mounting
1
2
3
4
75 mm
3
B
A
C
D
Allen screw
3 mm a.f.

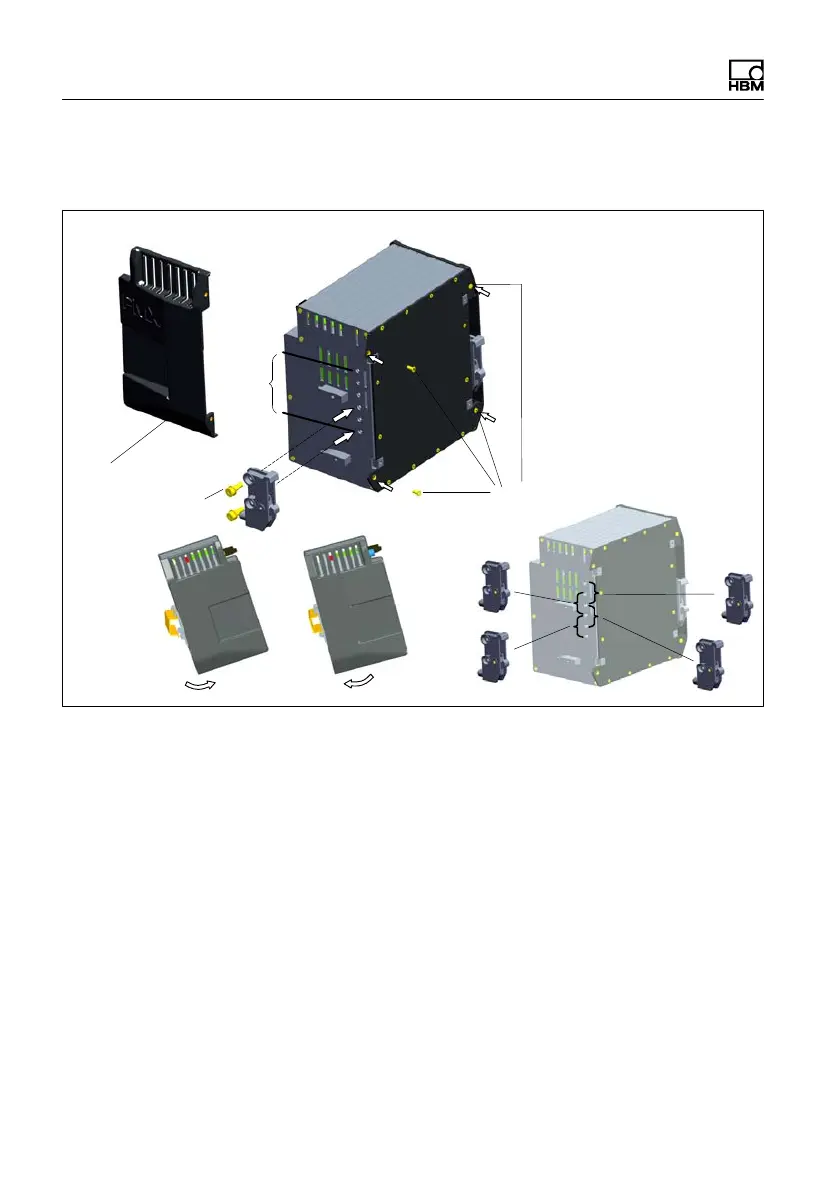

Fig. 7.1 Mounting on a support rail
► Undo the four back-panel screws (Torx T10) (1)
► Slide the side parts forward
(2)
► Screw on the support rail mounting (Rail-Clip) (3)
(approx. 5 Nm) in a choice of four positions (A to D)
(two positions for the 7.5 mm support rail)
► Screw the side panels (2) back on
► Hook the PMX device into the support rail (4)
