Mounting/Dismounting/Replacing
PMX A4354-2.2 HBM: public 45
Important
Device damage caused by the PMX falling due to resis
tance in hooking/unhooking the PMX.
HBM recommends using a DIN support rail (DIN EN
60715), 15 mm in height. When using a smaller support
rail (7.5 mm high), it should be shimmed to make it easy
to hook/unhook the PMX device.
The 7.5 mm support rail can only be used in the top two
positions (A and B).

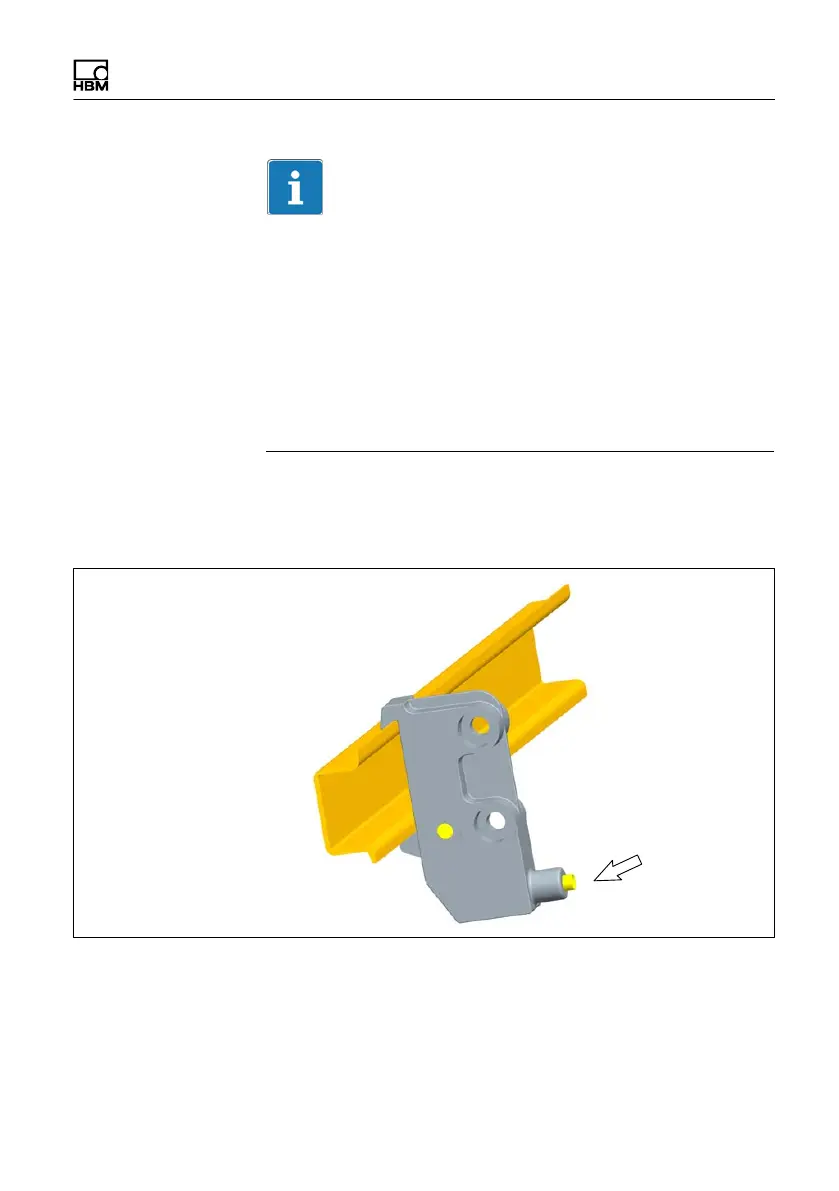

Attach the support rail mounting (Rail-Clip) to the
DIN rail
Allen screw
2.5 a.f.
At the time of delivery, the self-locking (2.5 mm a.f.) Allen
screws are unscrewed as far as the stop.
► Clip on the support rail mounting (Rail-Clip)
