HBM PX455 - IEPE Transducers with External Measuring Amplifier

Electrical connections PMX
82 A4354-2.2 HBM: public PMX
Current-fed piezoelectric transducers, IEPE or IPC
transducers, are supplied with a constant current, e.g. 4
mA, and output a voltage signal that can be controlled
with the PX401 via an external module.
8.4.3.4 IEPE transducers with external measuring
amplifier
(-)
(+)
Cable shield
123
1-wire EEPROM (optional) view from below
2 Data
3 No function
1
24 V
wh
gn
rd
bk
PIN:
2
6
3
5
4
Smart modules
(1-EICP-B-2)
IEPE
BNC
1
2
7
5
6
Signal +
Signal -
2
4
0 V
PX401
PX401

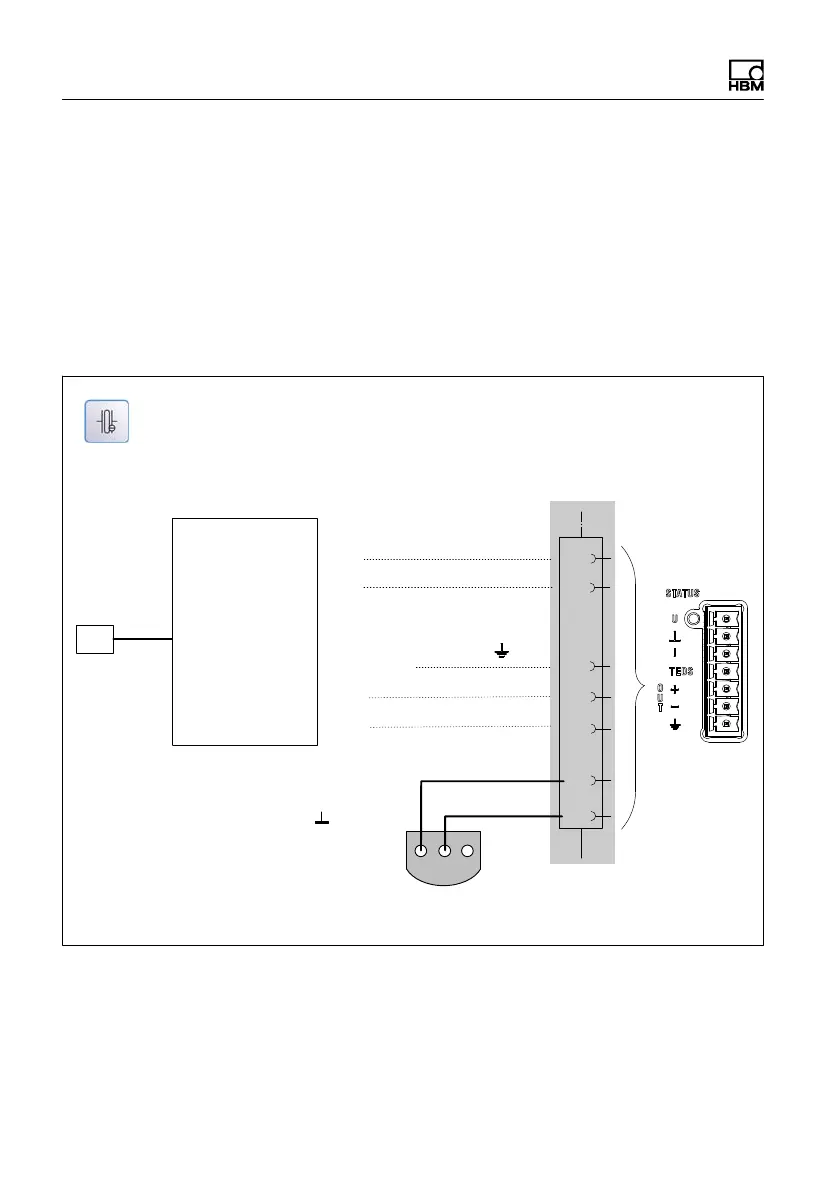

Fig. 8.9 PX401 plug terminal lEPE transducers
