Electrical connections PMX
PMX A4354-2.2 HBM: public 75
8.4.2.4 Potentiometric transducer
Potentiometric transducer
1
2
3
3'
2'
1
2
3
Sense lead (-)
Cable shield
Measurement signal (+)
Bridge excitation
voltage (-)
Bridge excitation
voltage (+)
Sense lead (+)

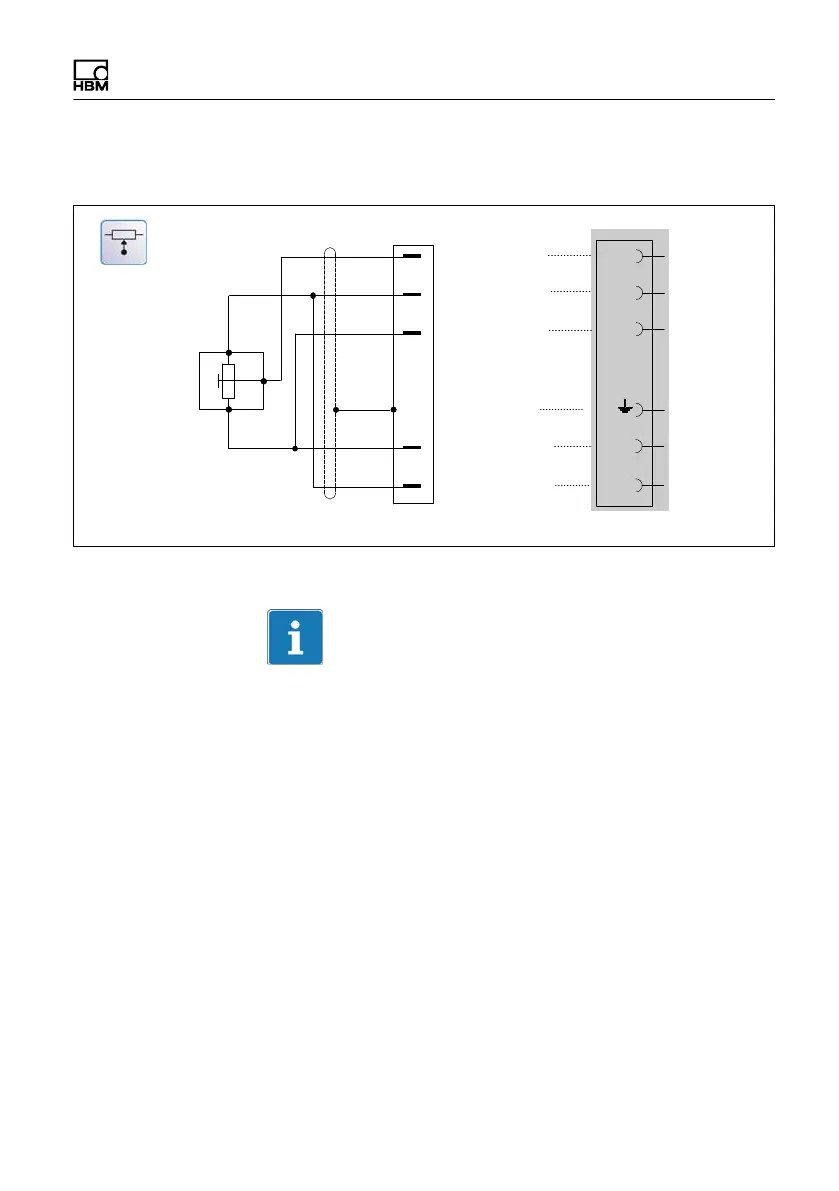

Fig. 8.4 PX455 plug terminal potentiometric transducer
Important
Transducer connection in a four/three wire
configuration:
When connecting a transducer in a four/three wire
configuration, the sense leads must be connected to the
corresponding bridge excitation circuit (PIN 2'-2 and
Pin 3'-3) by wire bridges, as otherwise a sensor error will
be detected.
TEDS functionality is not available when connecting in a
fourwire configuration.
