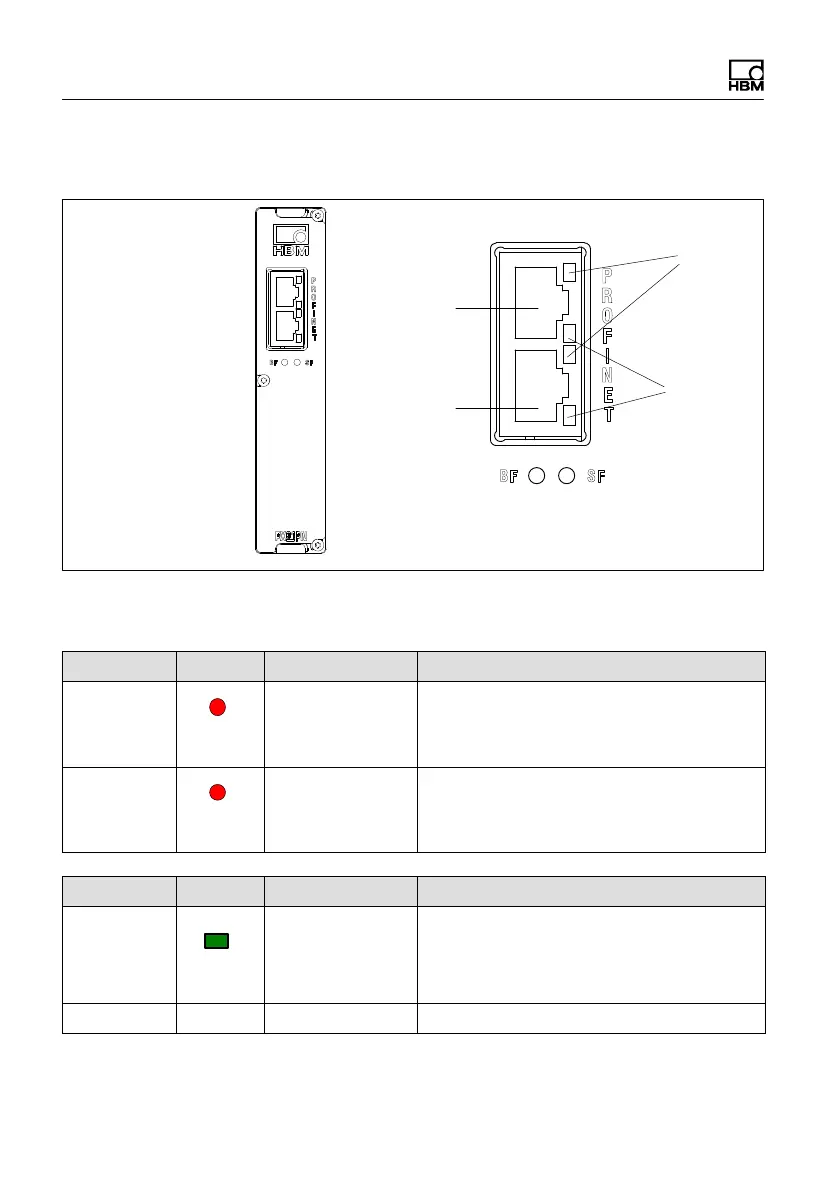

Electrical connections PMX
64 A4354-2.2 HBM: public PMX
PX01PN
Port 1
Port 2
P1
P2
1
2
PROFINET
LED LED Status Significance
SF
red
On
Flashing
System error, incorrect configuration
Flashing for device detection is controlled
by the IO controller
BF
red
On
Flashing
No connection or no configuration
Bus error, incorrect configuration, not all
IO devices are connected
LED LED Status Significance
1
green
Permanently on
Flashing
Off
Connection established
Send / Receive
No connection
2 - - No function
