HCFA Q Series User Manual

43
Control circuit voltage
DC5V~24V
Rated load current
250mA
Max. voltage drop at power-ON
0.05V
Leakage current at power-OFF
<0.1mA
Output frequency
100KHZ（Version 2.XX.XX）200KHz（Version 3.XX.XXor more）
Common method
Evey 8 points share a common terminal.
3-2-2 AC power module specifications（not updated）
3-2-3 EC coupler module specifications
项目
技术规格
Functions
Connect terminal module to 100BASE-TX EtherCAT network
Data transmission
EtherNet/EtherCAT（at least CAT5）， shielded
Distance between stations
Up to 100m
Transmission protocol/transmission rate
EtherCAT/100Mbaud
Bus interface
2 x RJ45
Power supply
DC24V（-10%~+10%）
Power consumption
0.6A（Typ）
QBUS load power
8W（Typ）
Electrical isolation
500V（backboard/input power）
Dimensions
About 15 mm x 100 mm x 70 mm (Width alignment: 12 mm)
Weight
About 90g
CPU unit dimensions

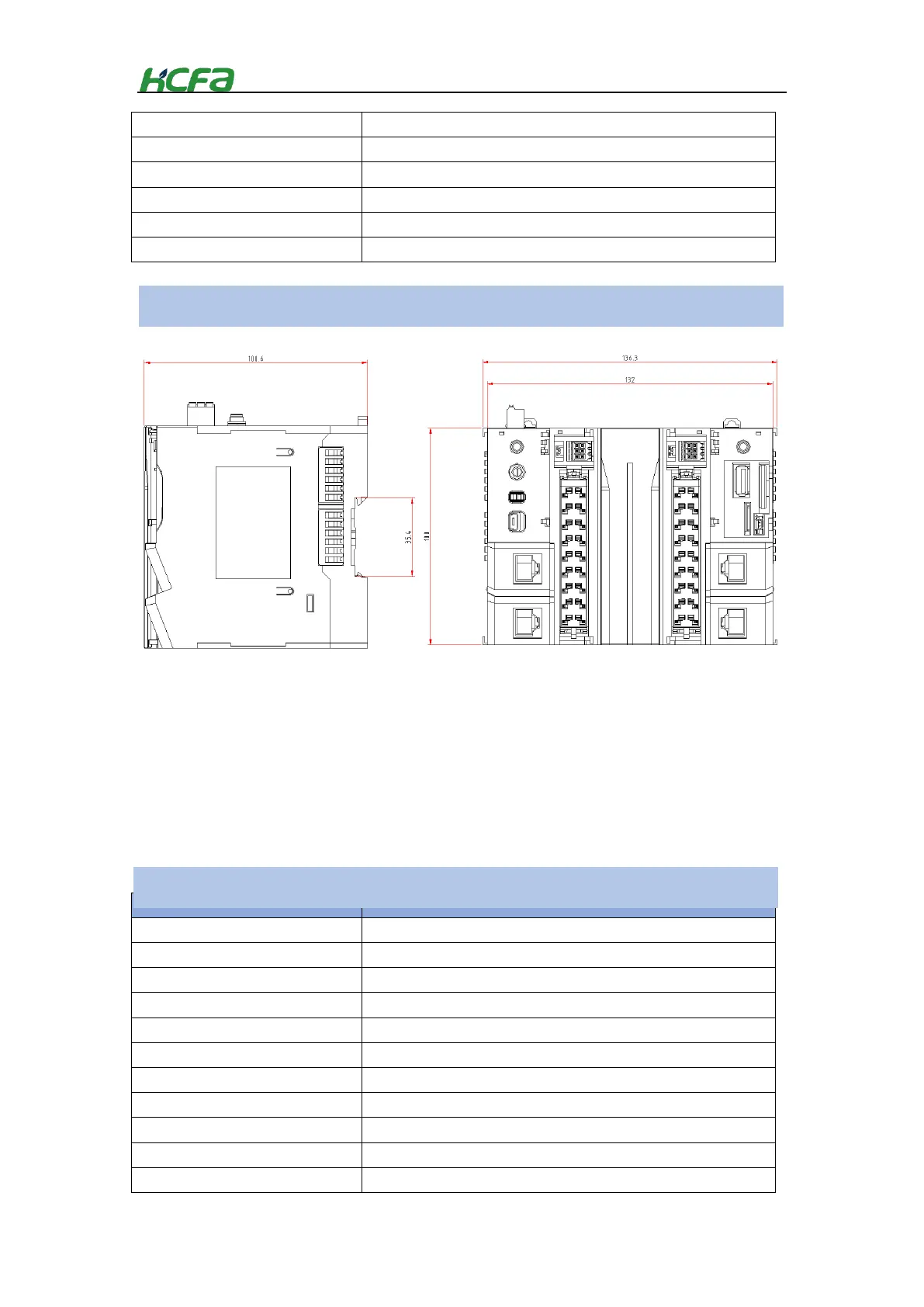

Figure 0-1 CPU unit dimension diagram
ECcoupler module basic specifications
