4-3-6 Analog input module wiring
The analog input module, as the remote extension module of the Q series CPU unit, cannot work alone
and needs to be connected to the EC coupler or the right side of the CPU unit. It supports both current
and voltage input. HCFA offers varieties of input ranges and the working range can be modified online
through SDO or COE, where voltage input supports single ended and differential input.
Name
Terminal
Name
V1-
V1+
G
I1
V2-
V2+
G
G

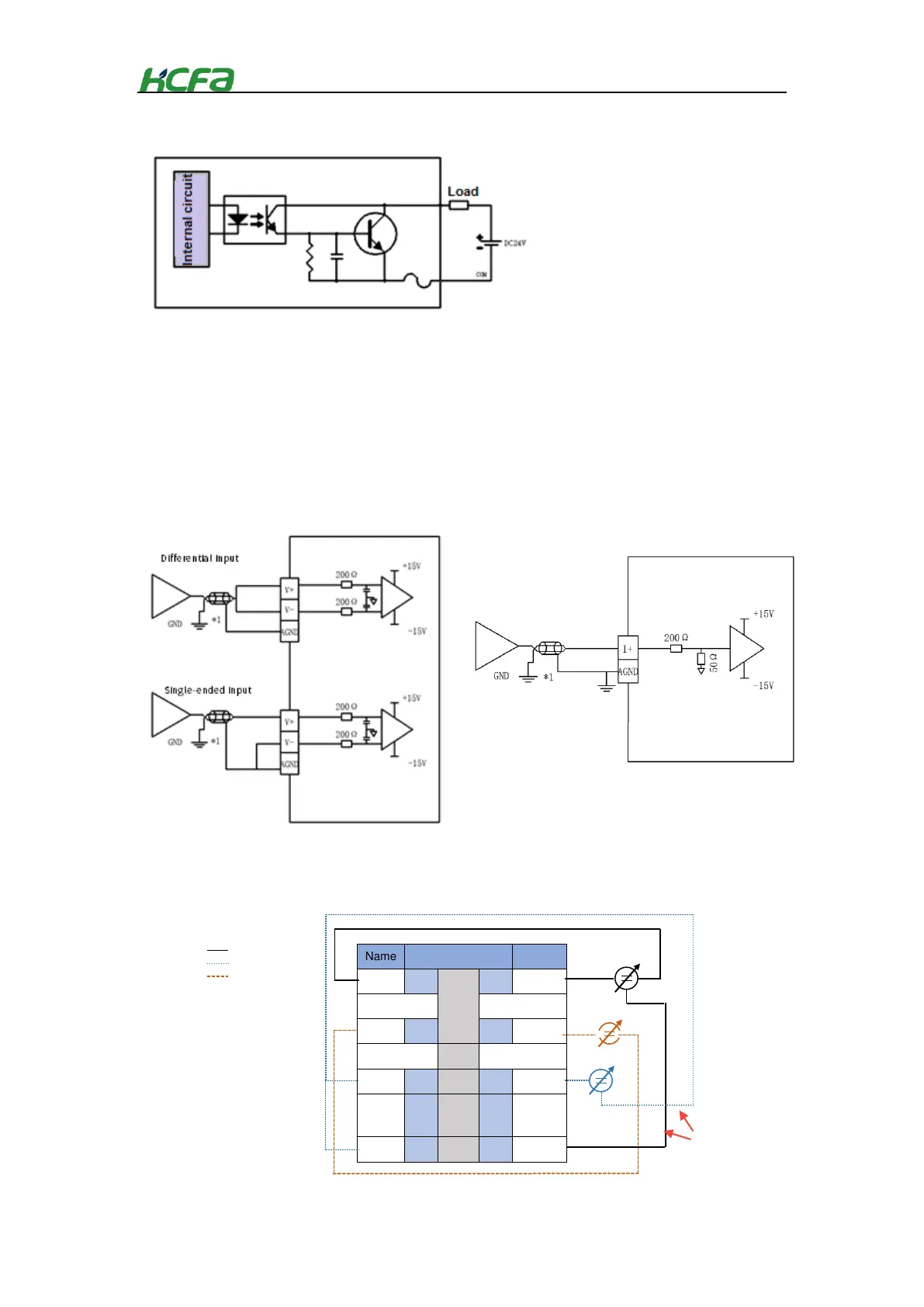

Internal circuit diagram for voltage
differential and single-ended input
Internal circuit diagram for current input
Wiring diagram
Voltage signal
to be measured
Current signal
to be measured
*1 Equipotential bonding
Voltage signal
to be measured
Equipotential cable
Voltage differential input wiring
Voltage single-ended input wiring
Current input wiring
NPN wiring
Sink output
low level is effective.
NPN wiring
PNP wiring
Digital I/O module output wiring
