HCFA Q Series User Manual

28
2-4-2 Digital output module model name and part names

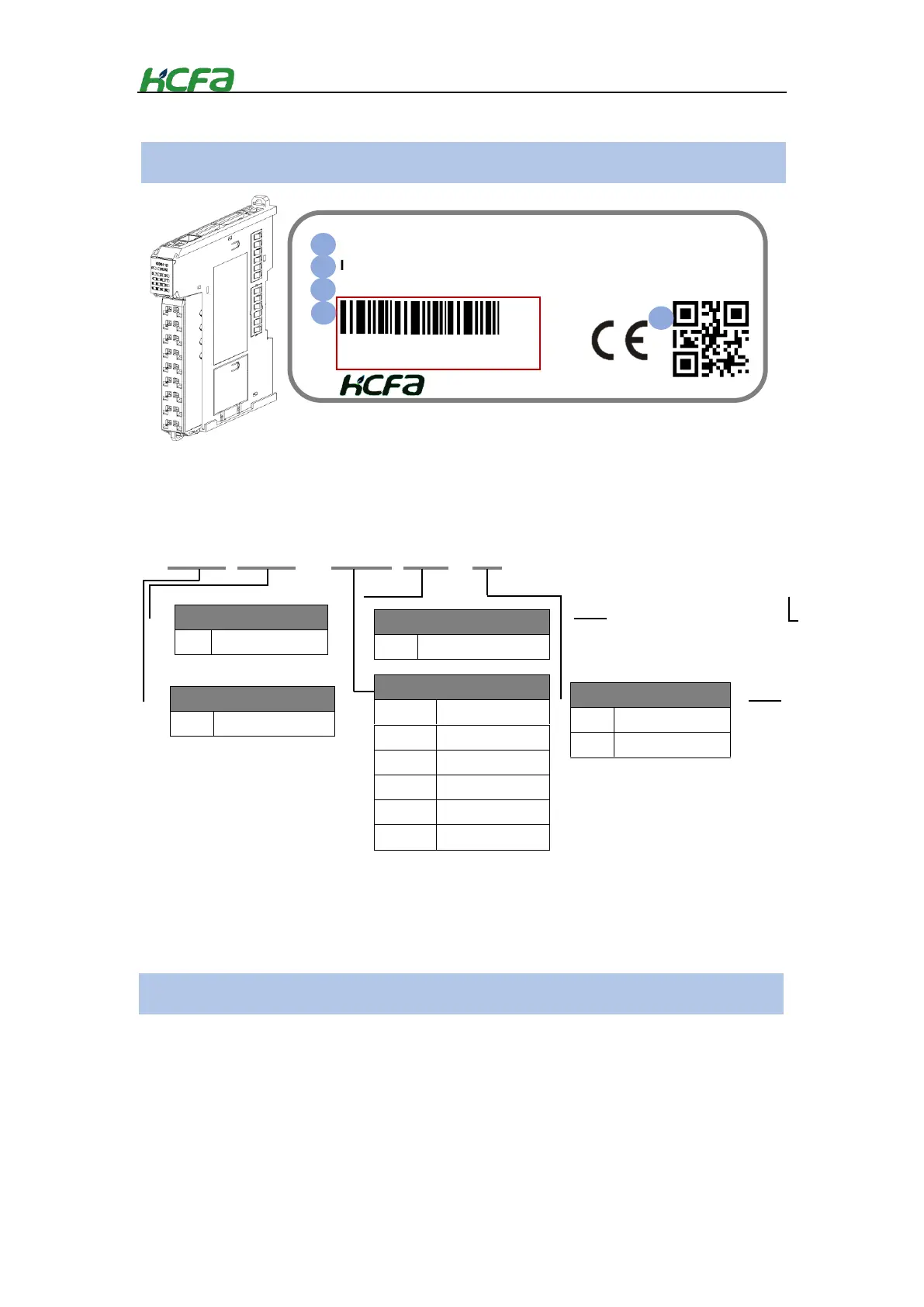

Digital output module nameplate description：
① Main unit or module model name description：
HC QX - OD 16- D
② Working voltage and input/output current for normal operation
③ Output power
④ Barcode, S/N &P/N
⑤ QR code(model name, serial number)
Series name
QX
QX slave
Output channel
16
16-ch output
Power type
D
DC power
A
AC power
Company information
HC
HCFA
Function module
ID
Digital input
OD/OC
Digital output
MD
Digital I/O
AD
Analog input
DA
Analog output
MA
Analog I/O
Part names for digital output module
Digital output module model name
MODEL:HCQX-OD16-D
INPUT
：
DC24V 5mA
（
Typ.
）
QBUS OUTPUT：0.8W
MADE IN CHINA
P/N：200019Y0852000000000
S/N：Y2119557811
1
2
3
4
5
