Chapter 4 Installation and wiring
4-1 Module connection
This section describes how to install the modules and DIN raio mounting.
4-1-1 Installing moduels

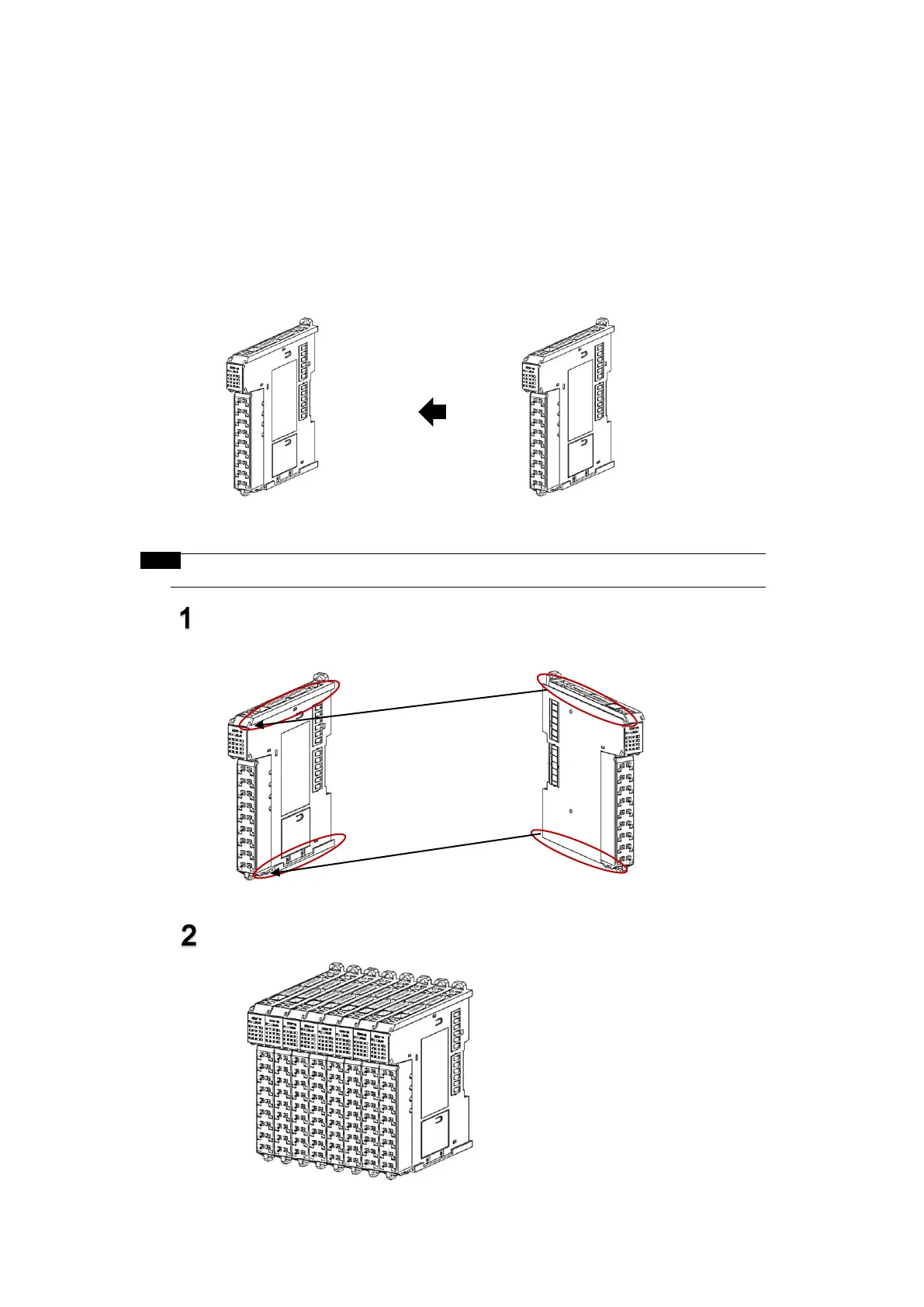

Take the installation of EC coupler and I/O module as the example:
Engage the right hookup guides of EC coupler with the left hookup guides of IO module and
slide the unit in on the hookup guides.
After installation completed, follow the same step to install other modules.
Make sure to turn OFF the power supply before installing the units and modules.
Right view of EC coupler module
guides of EC coupler with
the right hookup guides of
CPU unit, and slide in.
To Next Page
