interface or panel facing forward, as shown below：

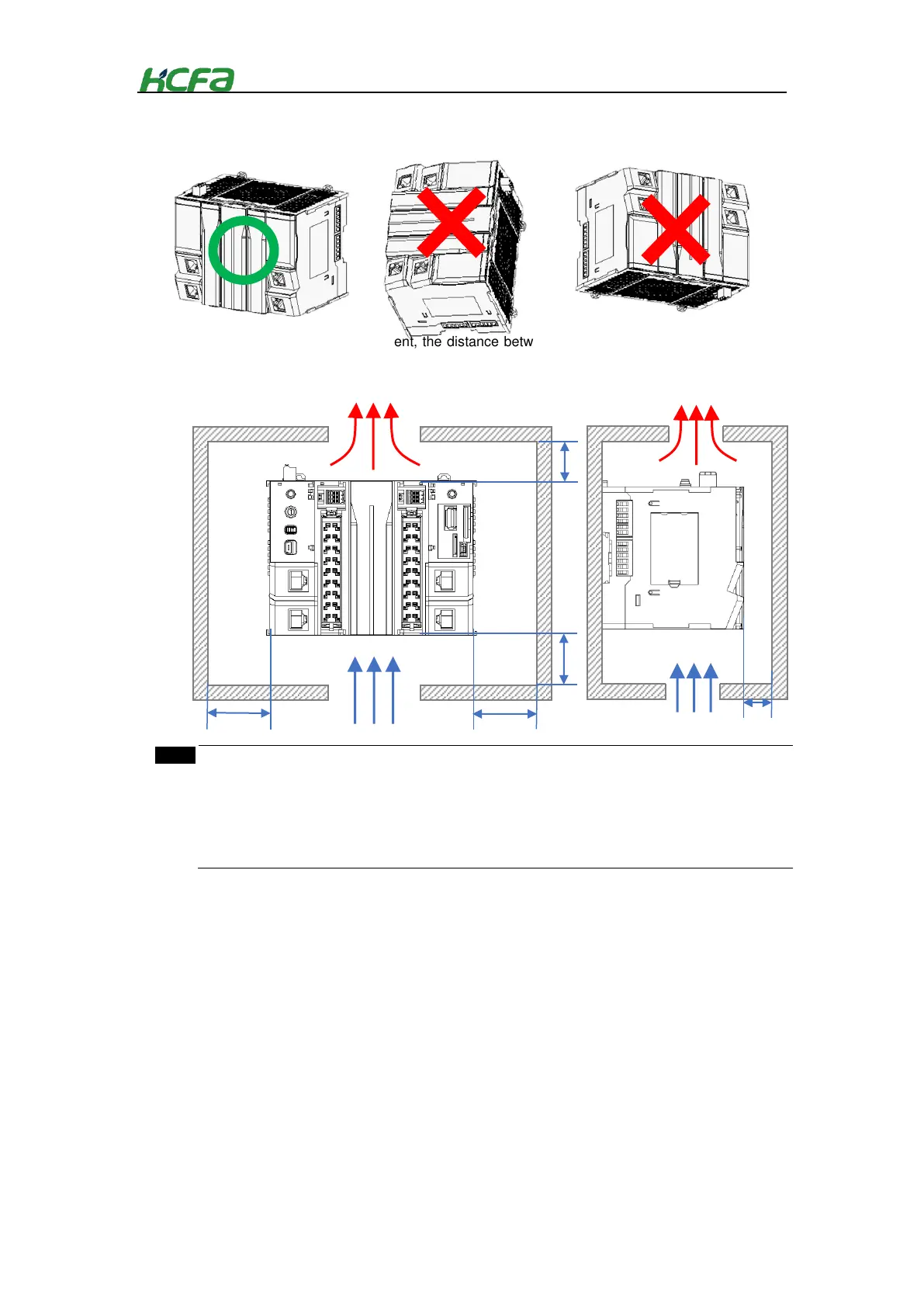

Installation space
When installing modules or equipment, the distance between the equipment the the wall or other
equipment must be more than 50mm to facilitate the ventilation and replacement of the modules
and equipment.
When the temperature inside the panel (the temperature under the CPU unit or the module) exceeds the
ambient temperature, please use forced air cooling or expand the interval with the surroundings, or improve
ventilation, etc. to reduce the temperature
When using extension modules (I/O special function modules, etc), dut to the heat dissipation and moduel
replacement, the distance between the upper and lower units should be at least 60mm.
