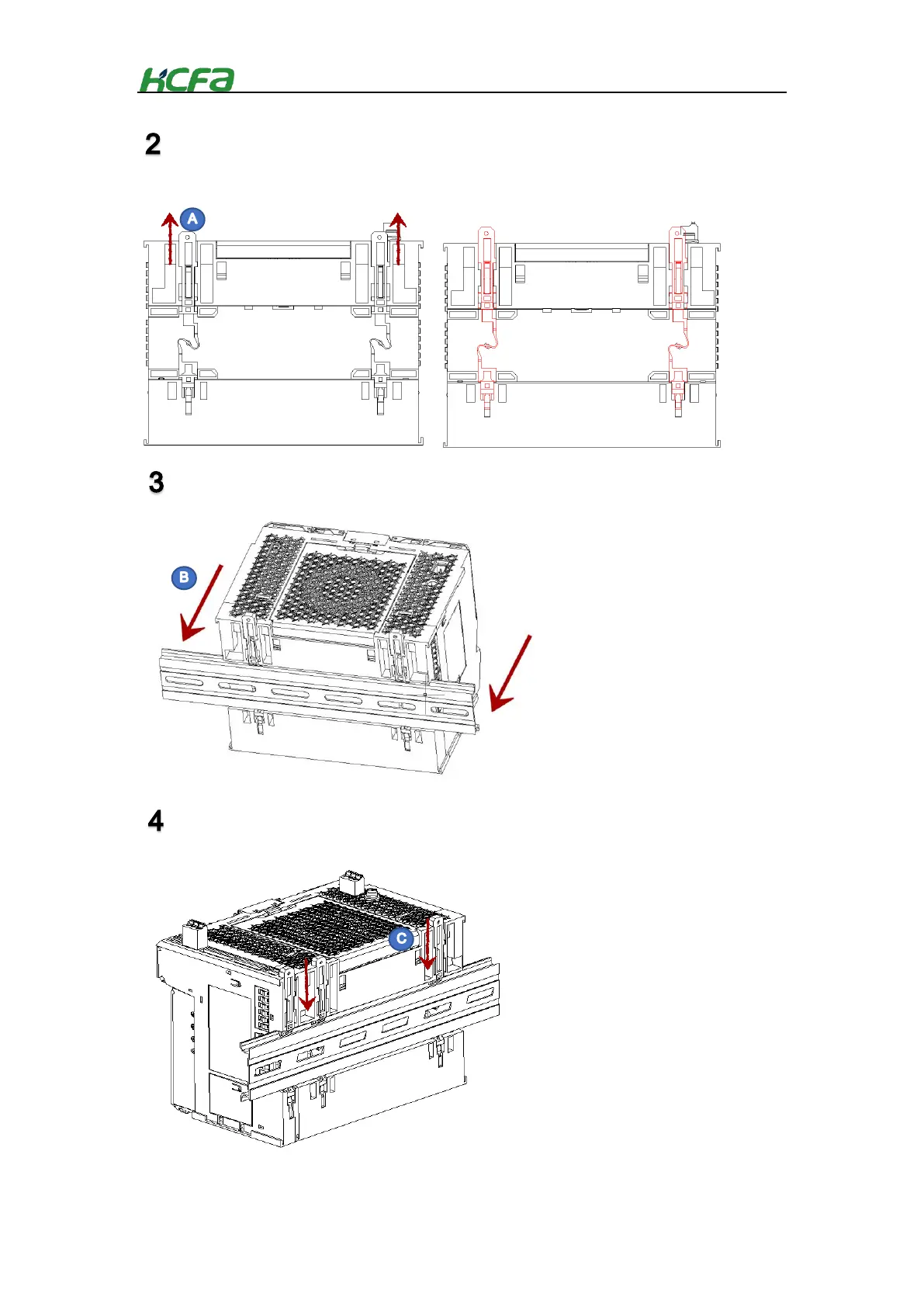

After connecting the CPU units and modules, unlock the mounting hook of the CPU unit and
pull it upward in the direction A as shown below.
Insert the DIN rail mounting hook into the DIN rail in the direction B as shown below.
Push down the DIN rail mounting hook of the CPU unit in the direction C. When you hear a “click”,
the mounting hook is locked on the rail.
