HEIDENHAIN iTNC 530 179
5.2 Tool Data

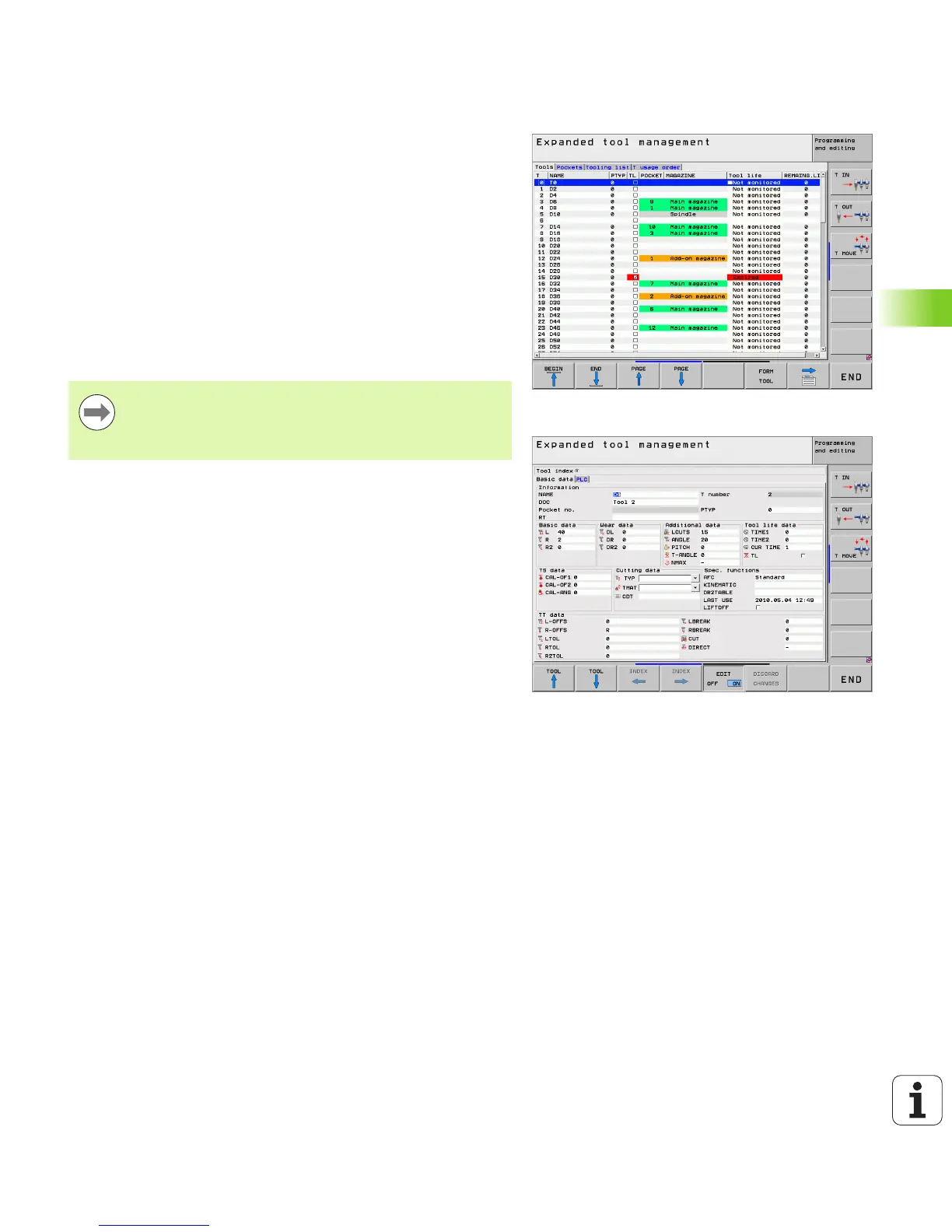

In the new view, the TNC presents all tool information in the following
four card registers:
îš„ Tools:
Tool specific information
îš„ Tool pockets:
Pocket-specific information
îš„ Tooling list:
List of all tools in the NC program that is selected in the Program
Run mode (only if you have already made a tool usage file, see "Tool
usage test", page 175)
îš„ T usage order:
List of the sequence of all tools that are inserted in the program
selected in the Program Run mode (only if you have already made a
tool usage file, see "Tool usage test", page 175)
You can edit the tool data only in the fillable form view,
which you can activate by pressing the FORM TOOL soft
key or the ENT key for the tool that is highlighted on the
screen.
