HEIDENHAIN ITNC 530 - 6-2010 DIN-ISO PROGRAMMING User Manual

HEIDENHAIN iTNC 530 63
2.2 Visual Display Unit and Keyboard
2.2 Visual Display Unit and
Keyboard

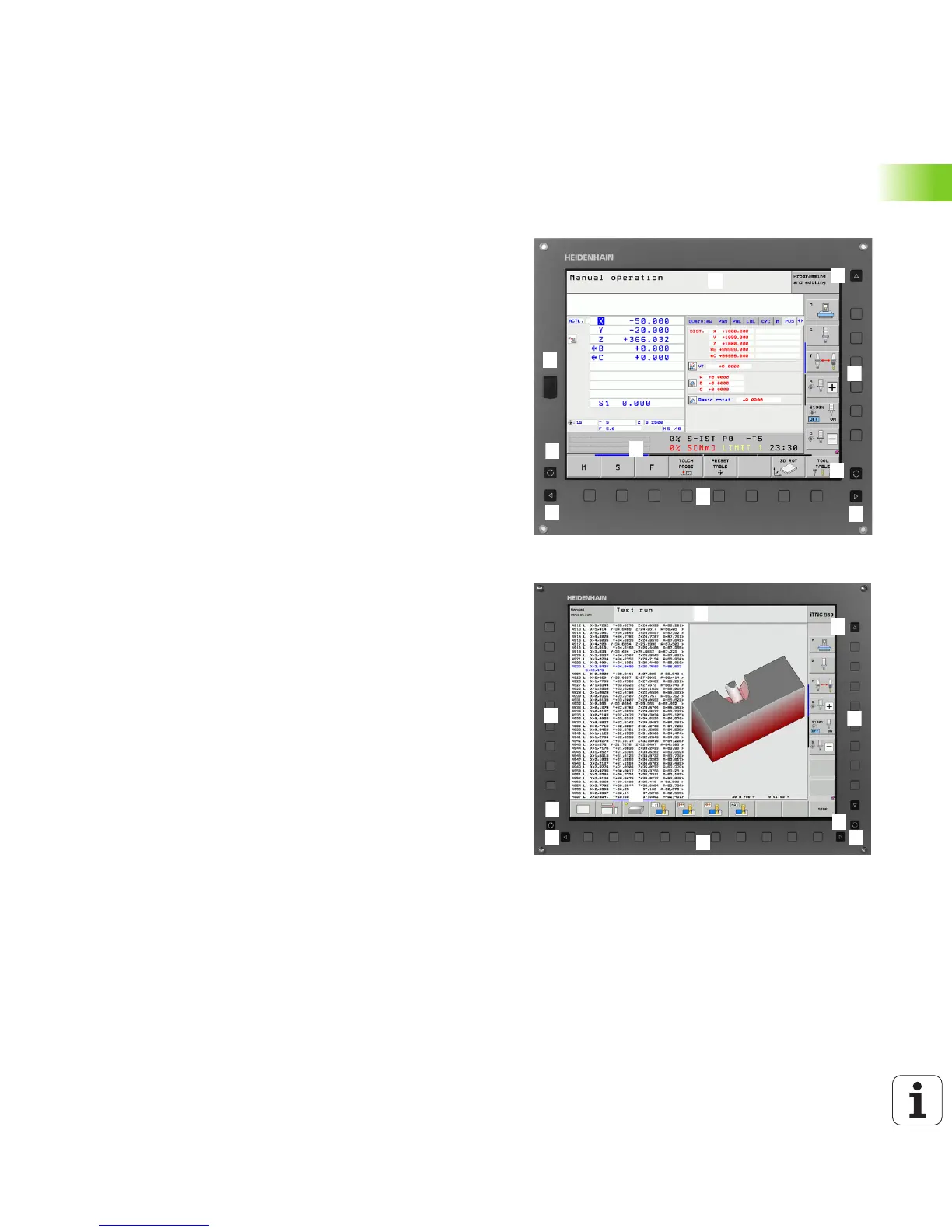

Visual display unit
The TNC is delivered with the BF 250 15-inch color flat-panel screen.
The BF 260 19-inch color flat-panel screen is available as an
alternative.
1
3
1
1
4
4
5
1
6
7
8
2
1
9
1
3
4
4
5
1
6
7
8
2
1
1
7
1 Header
When the TNC is on, the selected operating modes are shown in
the screen header: the machining mode at the left and the
programming mode at right. The currently active mode is
displayed in the larger box, where the dialog prompts and TNC
messages also appear (unless the TNC is showing only graphics).
2 Soft keys
In the footer the TNC indicates additional functions in a soft-key
row. You can select these functions by pressing the keys
immediately below them. The lines immediately above the soft-
key row indicate the number of soft-key rows that can be called
with the black arrow keys to the right and left. The active soft-key
row is indicated by brightened bar.
The15-inch screen has 8 soft keys, the 19-inch screen has 10 soft
keys.
3 Soft-key selection keys
4 Shifts between soft-key rows
5 Setting the screen layout
6 Shift key for switchover between machining and programming
modes
7 Soft-key selection keys for machine tool builder soft keys
The15-inch screen has 6 soft keys, the 19-inch screen has 8 soft
keys.
8 Switches soft-key rows for machine tool builders
9 USB connection
