260 Programming: Q Parameters
9.3 Describing Contours through Mathematical Operations
Programming fundamental operations
Example:

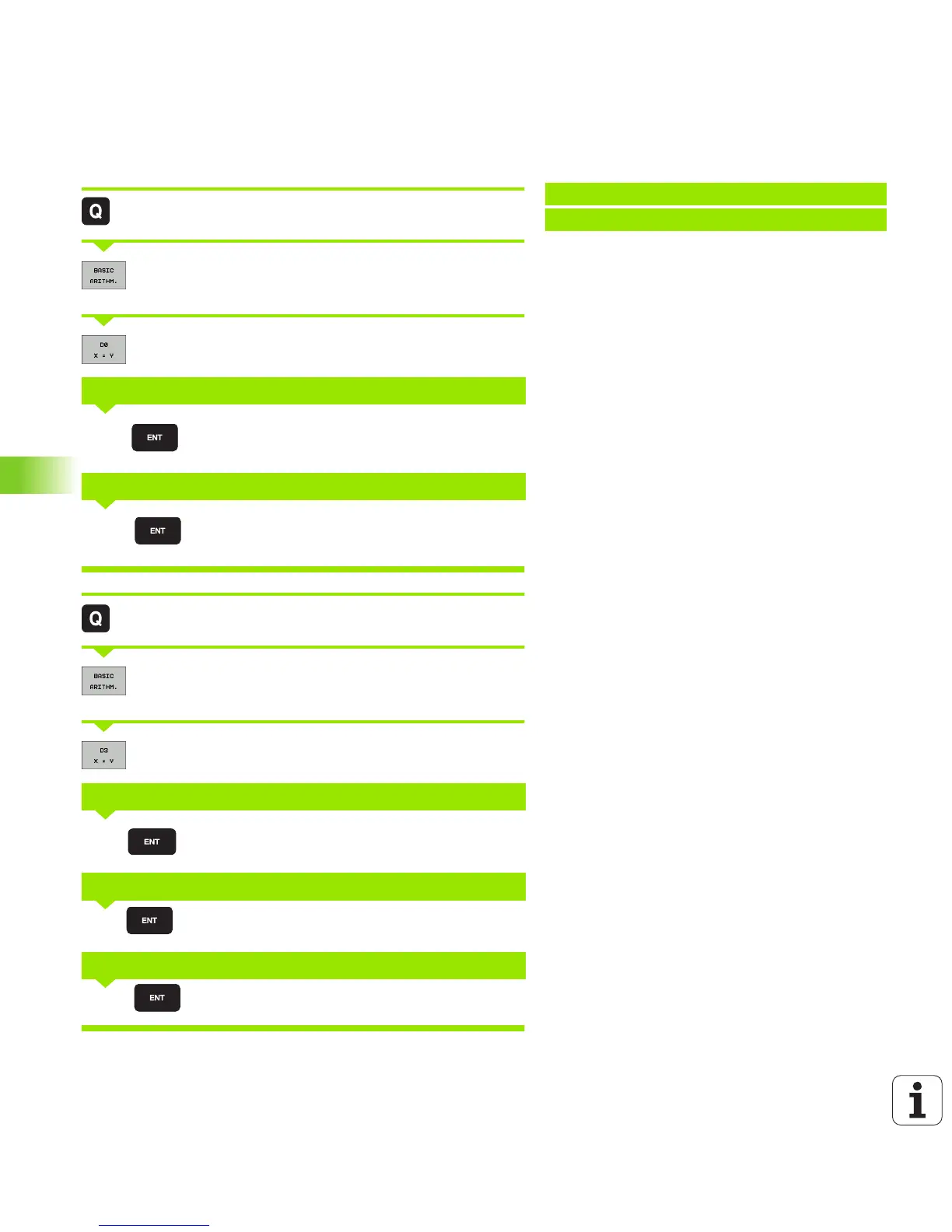

Call the Q parameter functions by pressing the Q key
To select the mathematical functions, press the
BASIC ARITHMETIC soft key
To select the Q parameter function ASSIGN, press
the D0 X = Y soft key
Enter the number of the Q parameter, e.g. 5
Assign the value 10 to Q5
Call the Q parameter functions by pressing the Q key
To select the mathematical functions, press the
BASIC ARITHMETIC soft key
To select the Q parameter function
MULTIPLICATION, press the D3 X * Y soft key
Enter the number of the Q parameter, e.g. 12
Enter Q5 for the first value
Enter 7 for the second value
Example: Program blocks in the TNC
N17 D00 Q5 P01 +10 *
N17 D03 Q12 P01 +Q5 P02 +7 *
PARAMETER NO. FOR RESULT?
1ST VALUE OR PARAMETER?
PARAMETER NO. FOR RESULT?
1ST VALUE OR PARAMETER?
2ND VALUE OR PARAMETER?
