92 Programming: Fundamentals, File Management
3.2 Creating and Writing Programs
Programming tool movements in DIN/ISO
format
To program a block, select a DIN/ISO function key on the alphabetic
keyboard. You can also use the gray contouring keys to get the
corresponding G code.

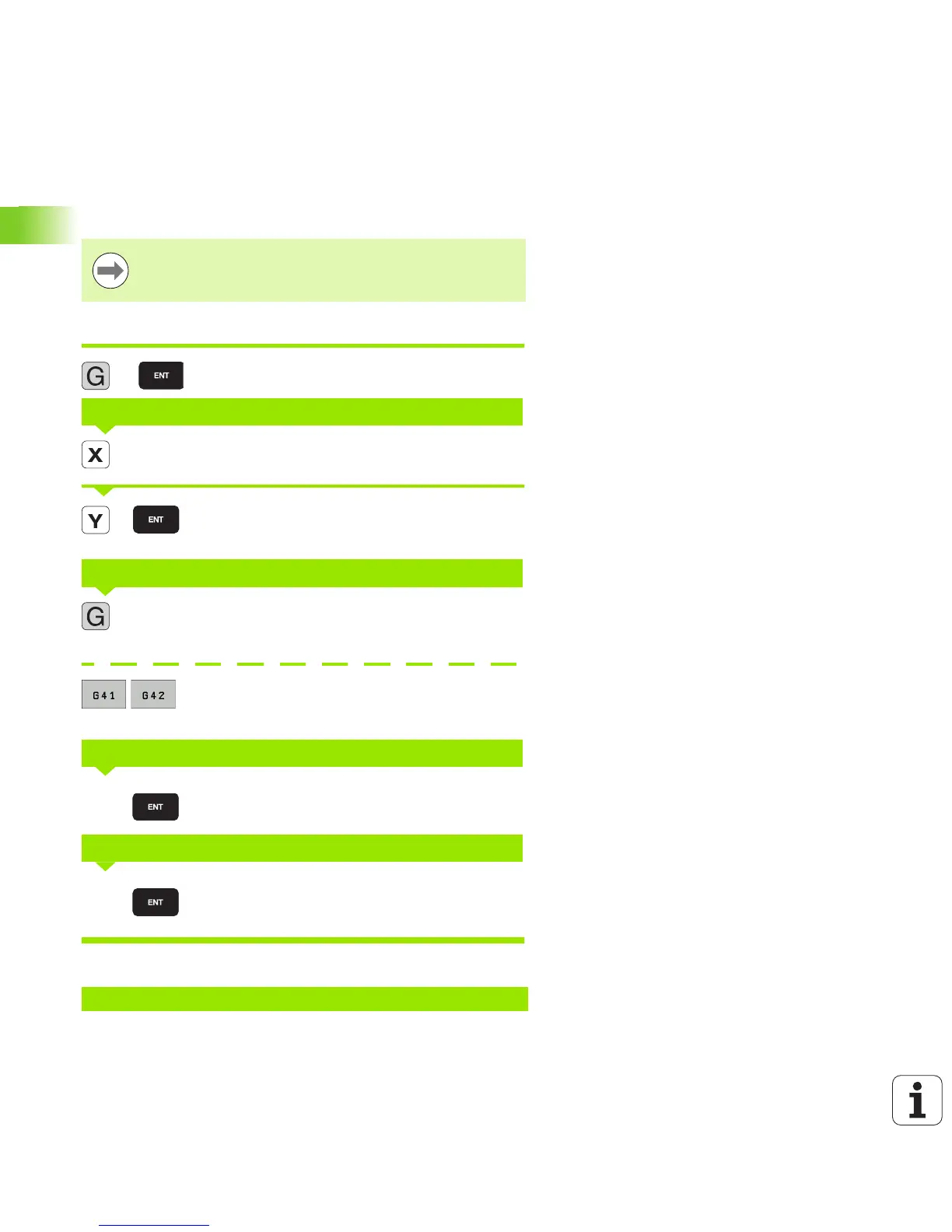

Example of a positioning block
Start block.
Enter the target coordinate for the X axis.
Enter the target coordinate for the Y axis, and go to
the next question with ENT.
Select tool movement without radius compensation:
Confirm with the ENT key or
To move the tool to the left or to the right of the
contour, select function G41 (to the left) or G42 (to
the right) by soft key.
Enter a feed rate of 100 mm/min for this path contour;
go to the next question with ENT.
Enter the miscellaneous function M3 “spindle ON.”
Pressing the ENT key terminates this dialog.
The program-block window displays the following line:
You only need to make sure that capitalization is active.
COORDINATES?
PATH OF THE CUTTER CENTER
FEED RATE F=?
MISCELLANEOUS FUNCTION M?
N30 G01 G40 X+10 Y+5 F100 M3 *
