HEIDENHAIN iTNC 530 459
14.4 Functional Safety FS (Option)
Overview of permitted feed rates and speeds

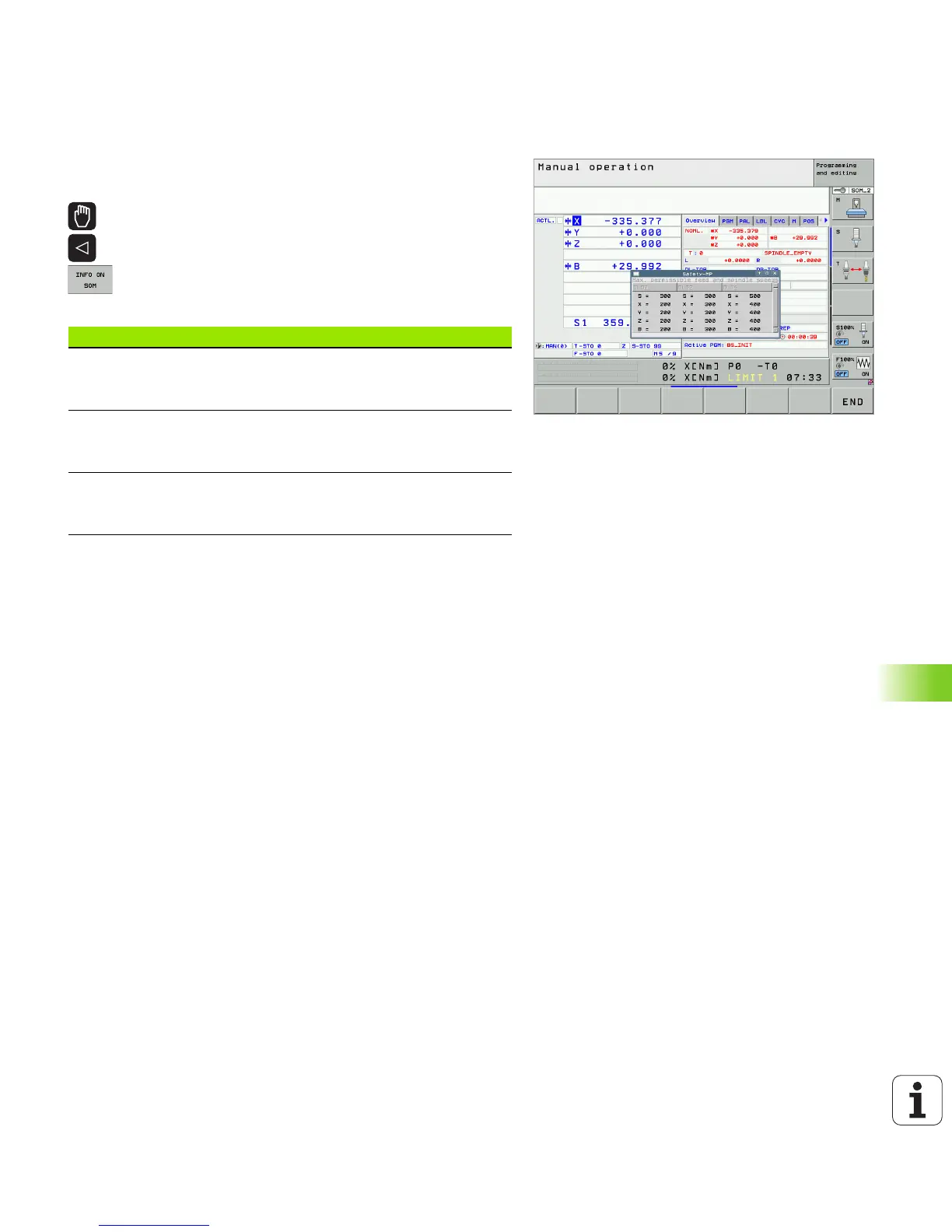

The TNC provides an overview of the permitted speeds and feed rates
for all axes depending on the active mode of operation.
U Select the Manual Operation mode
U Scroll to the last soft-key row
U Press the INFO SOM soft key: The TNC opens the
window containing the overview of permitted speeds
and feed rates
Column Meaning
SLS2 Safely limited speeds in the safety-related
operating mode 2 (SOM_2) for the respective
axes
SLS3 Safely limited speeds in the safety-related
operating mode 3 (SOM_3) for the respective
axes
SLS4 Safely limited speeds in the safety-related
operating mode 3 (SOM_4) for the respective
axes
