HEIDENHAIN iTNC 530 105
3.4 Working with the File Manager
Calling the file manager

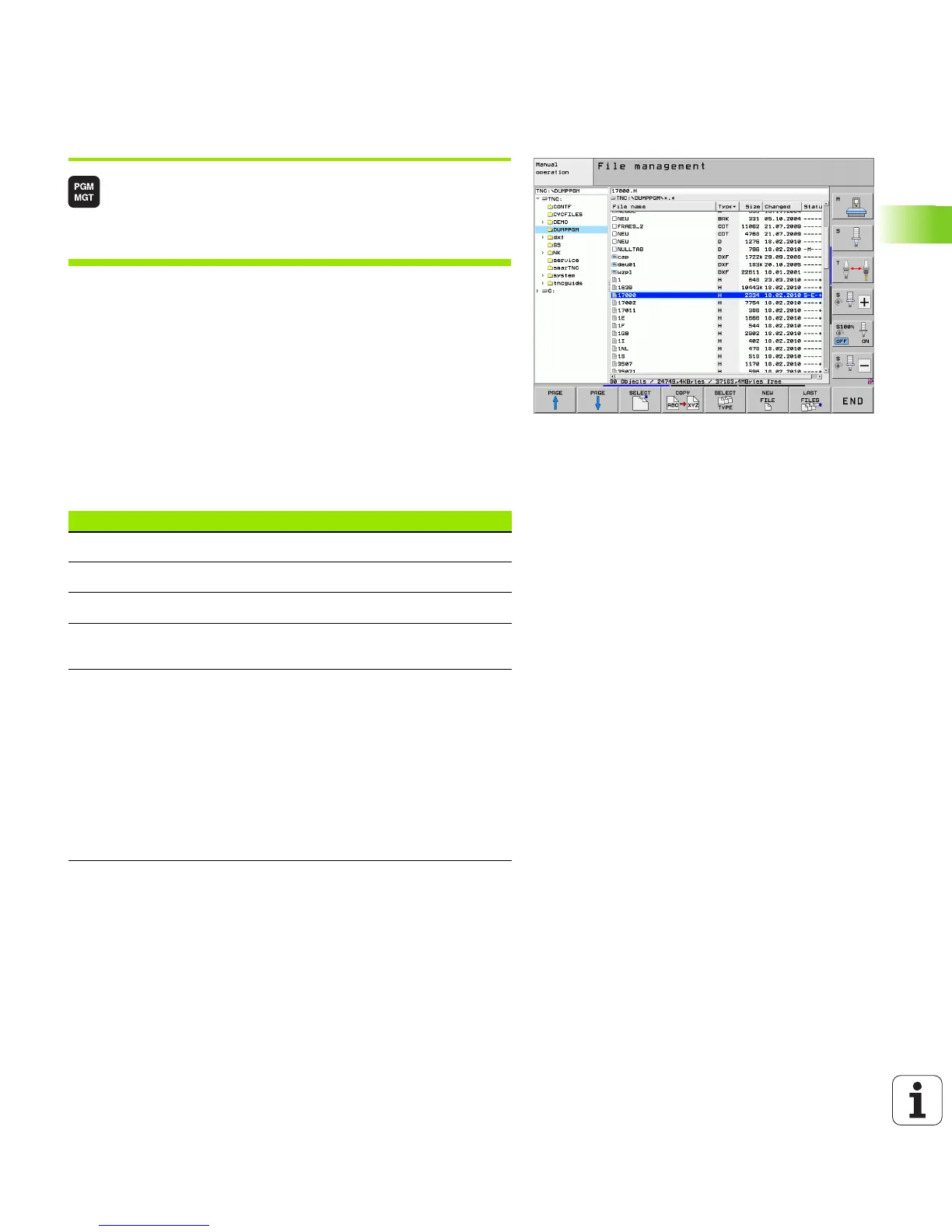

Press the PGM MGT key: The TNC displays the file
management window (see figure for default setting.
If the TNC displays a different screen layout, press
the WINDOW soft key.)
The narrow window on the left shows the available drives and
directories. Drives designate devices with which data are stored or
transferred. One drive is the hard disk of the TNC. Other drives are the
interfaces (RS232, RS422, Ethernet), which can be used, for example,
to connect a personal computer. A directory is always identified by a
folder symbol to the left and the directory name to the right.
Subdirectories are shown to the right of and below their parent
directories. A triangle in front of the folder symbol indicates that there
are further subdirectories, which can be shown with the –/+ or ENT
keys.
The wide window on the right shows you all files that are stored in the
selected directory. Each file is shown with additional information,
illustrated in the table below.
Display Meaning
File name Name with max. 25 characters
Type File type
Size File size in bytes
Changed Date and time that the file was last changed.
The date format can be set
Status File properties:
E: Program is selected in the Programming
and Editing mode of operation.
S: Program is selected in the Test Run mode
of operation.
M: Program is selected in a Program Run
mode of operation.
P: File is protected against deletion and
editing.
+: Dependent files exist (structure file, tool-
usage file)
