3 Installation of the drive set
CargoPower installation and operation, revision - 01 7
3 Installation of the drive set
3.1 Installation of the controller box
3.1.1 Fastening the controller box
Each controller box has two screw lugs on its housing for mounting. Only these screw
lugs may be used for mounting controller boxes (see fig.).
Screw recommended by HEINZMANN:
Cylinder screw DIN-EN-ISO14580-M5x12-8.8 galZn with Precote
30-8 coating

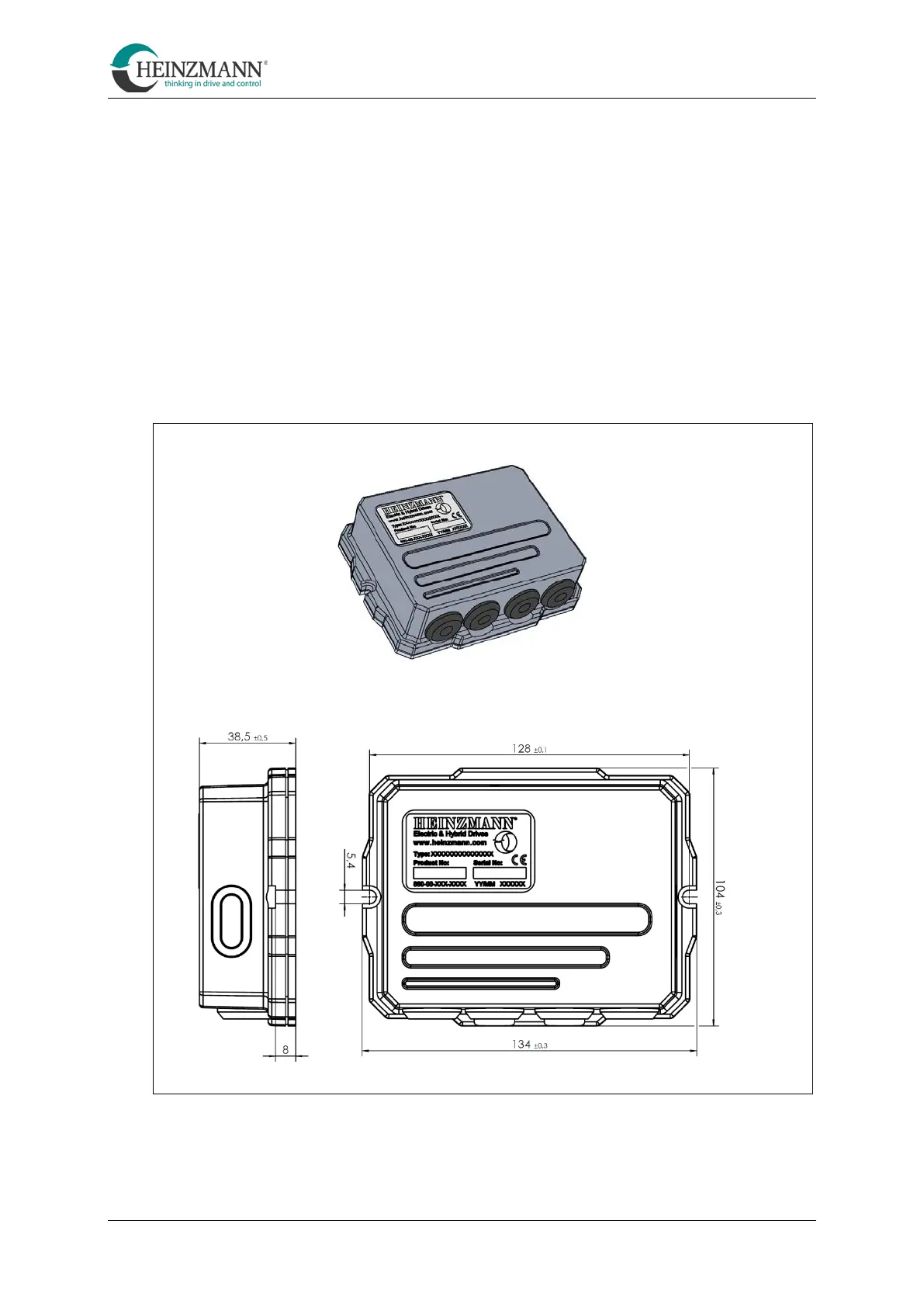

Fig. 5.1 Dimensions of the controller box
