5 System FREE DRIVE
CargoPower installation and operation, revision - 01 33
5.2 Installation of the FREE DRIVE
alternator

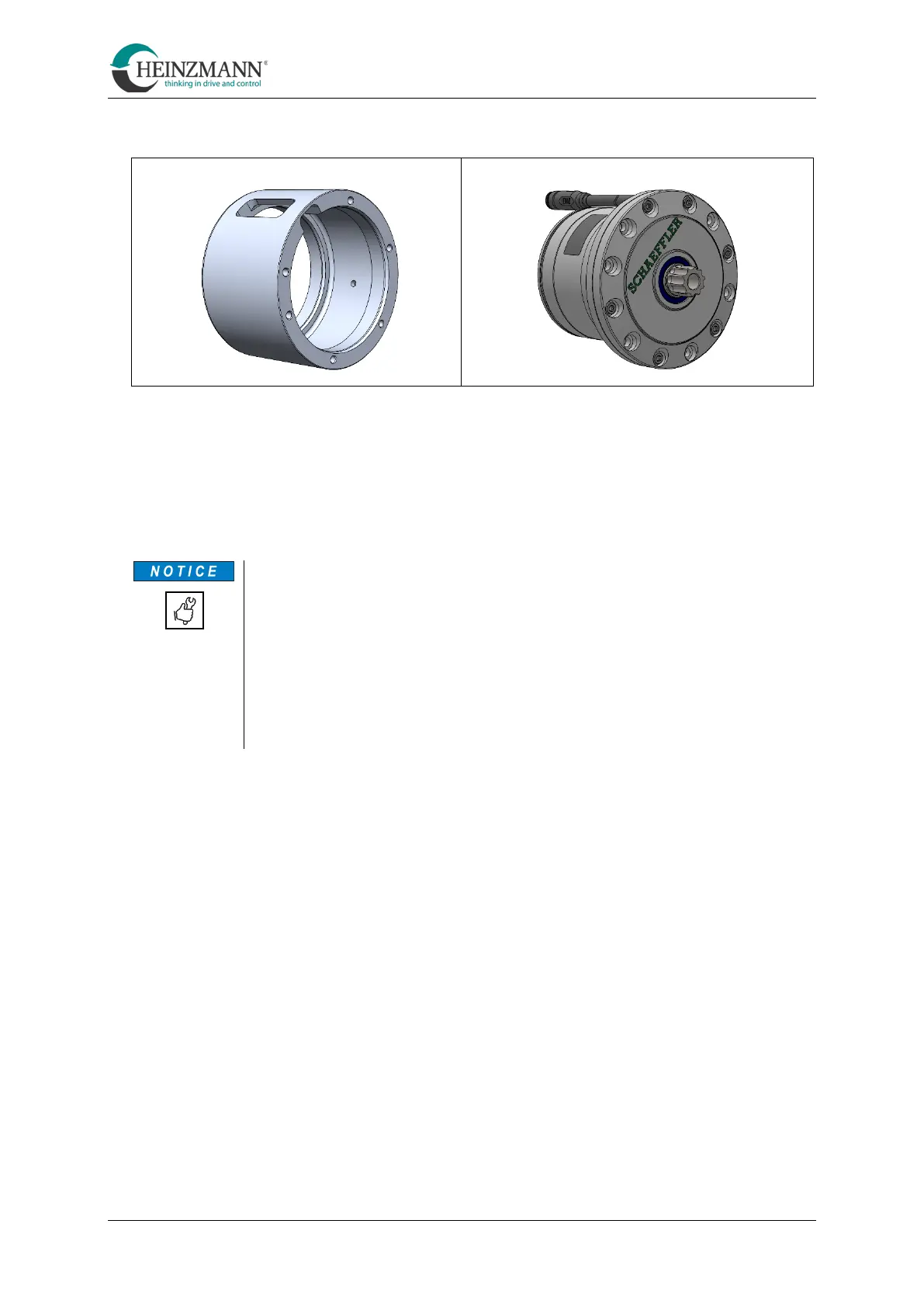

For the installation of the generator a constructive preparation of the vehicle is required.
Instead of a normal bottom bracket, a corresponding receptacle with dimensions suitable for
the generator must have been integrated into the vehicle frame. A technical drawing with all
necessary dimensions of this mount is available from HEINZMANN. The alternator is
inserted into the mount and fastened with the corresponding mounting screws.
The mounting screws must be provided with threadlocking
(recommendation: Loctite
243).
Tightening torque of the mounting screws: 8.5+1.2 Nm
The cable outlet of the generator must point upwards. The most favorable
orientation of the generator is the
one in which the lettering
"SCHAEFFLER" is aligned as horizontally as possible.
