8 Spoking the CargoPower motor RN 111
CargoPower installation and operation, revision - 01 66
It is recommended to check the spoke tension after certain mileages of the drive
wheels:
1. check: after 200 km Gesamtfahrleistung
2. check: after 500 km
3. check: after 2.000 km
4. check: after 5.000 km
From then on, renewed checks after every 5,000 km.
All information on spokes in this document is indicative only.
To assess the installation situation, a specialist should be
correctly lay out the spokes.

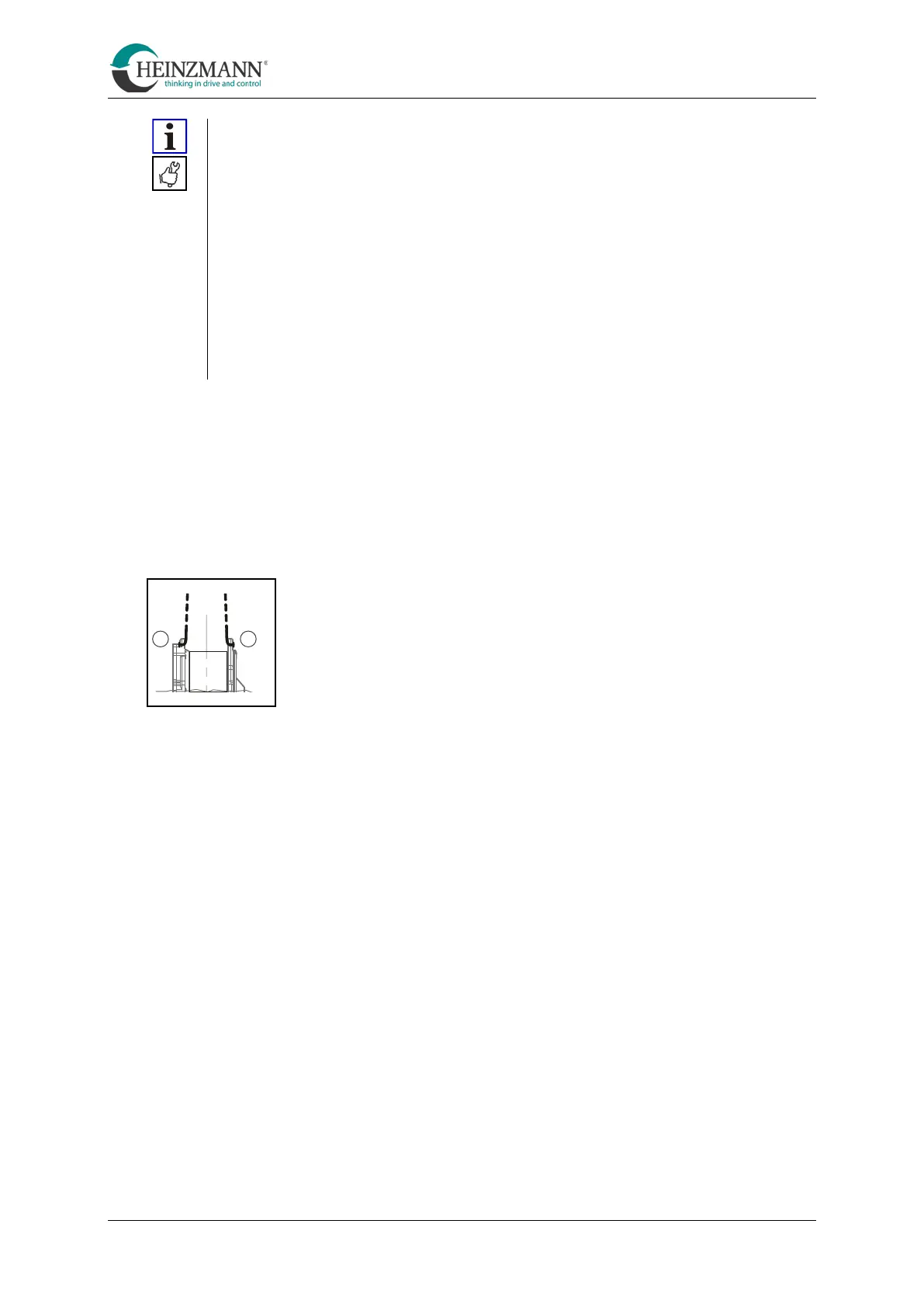

8.4.2 Spoking non-symmetrical wheels
If sufficient installation space is available CargoPower motors RN 111, which are
intended for single-sided suspended drive wheels or for two-track vehicles, can also be
asymmetrically spoked. In such cases, it is recommended that the spokes are:
level of the rim centre = centre plane between motor flanges
- Spoke length the same for all 36 spokes
- Spoke tension 1,200 N ±20 N
- Threading direction of the spokes on each flange
from the outside to the inside, all spoke heads pointing
outwards.
