4.1 Pedal sensors
The intended use of the vehicle determines which standard it must comply with
(DIN EN 15194:2018-11 or DIN EN 79010:2020).
The vehicle manufacturer must therefore consider whether the type of pedal
sensor he has selected is suitable and permissible.
4.1.1 Speed sensor
Speed sensors measure the speed of the pedal crank. The pedal sensor and encoder disk
are third-party products. Depending on the configuration of the system, they may come
from different manufacturers. It is mandatory that the instructions provided by the
respective manufacturer are followed. For special cases, please refer to these documents
and instructions. The following installation instructions have proven themselves in
practice.
Information on speed sensors can be found under the following links:
meter.com/backend//KingMeter_upload/material/doc/2021-03-
02/DH%20Sensor_User%20Manual_V1.0_20210114_1614647018989.pdf

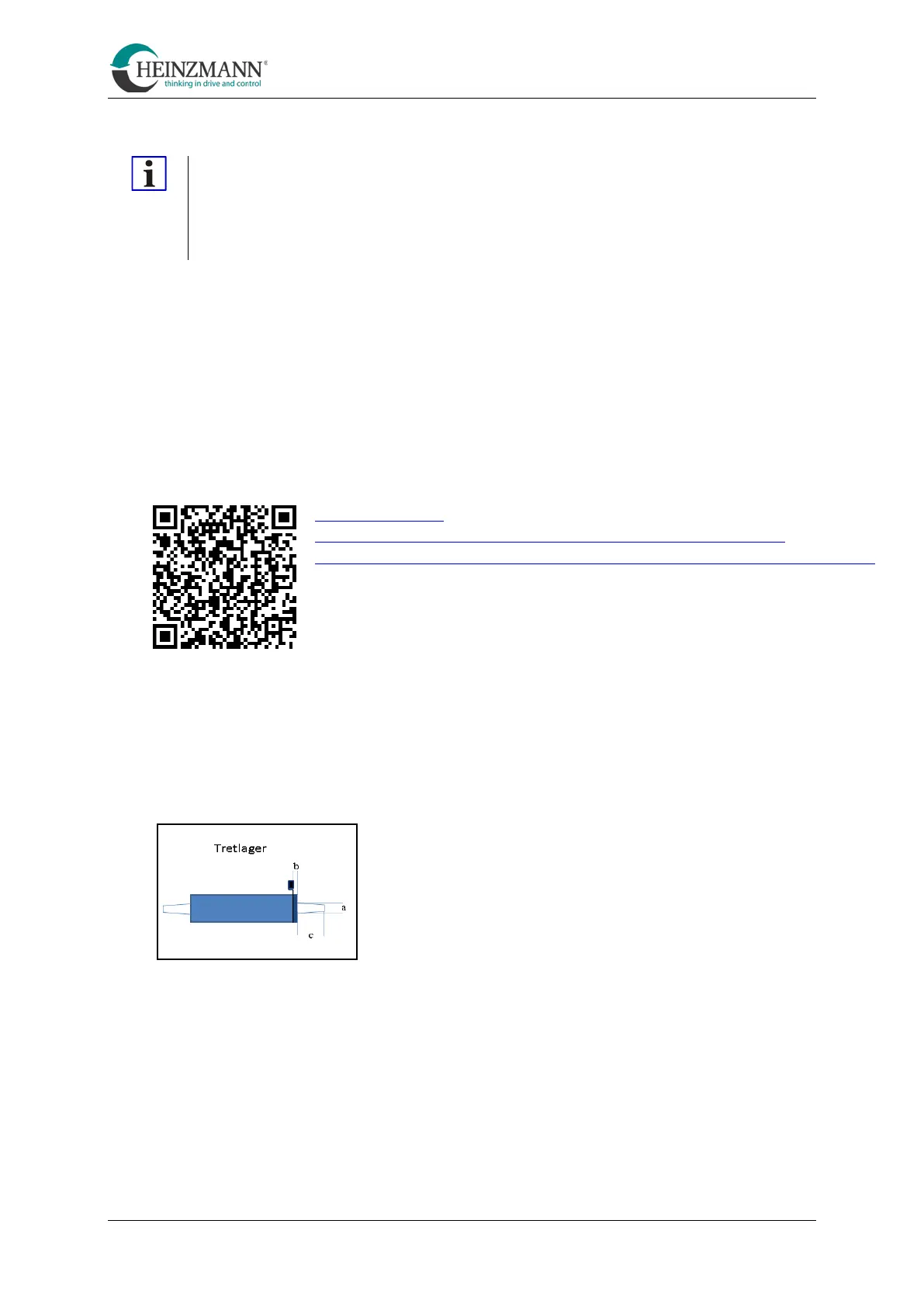

The encoder disk is normally mounted on the chainring side of the bottom bracket shaft.
It can be mounted on the right or left side. For mounting, the bicycle must be equipped
with a square bottom bracket with a stop collar and sufficient remaining four edge length
for the crank arm.
The following minimum dimensions are required:
b < 4 mm
c: must be greater than:
Crank eye width + width of the encoder disk so that
the encoder disk can be mounted
• Remove any existing chain guard
• Dismantle chain and crankset
• Screw bottom bracket out of bottom bracket tube with suitable bottom bracket key.
• Remove any chain guards that may be present
