Heinzmann CargoPower - Spoke Pattern for Front Wheel, Rim 26 or 28, 1× Crossed; Spoke Pattern for Front Wheel, Rim 20 or 24, Without Crossing; Spoke Pattern for Rear Wheel, Rim 20 or 24, Without Crossing

8 Spoking the CargoPower motor RN 111
CargoPower installation and operation, revision - 01 68
8.4.4 Spoke pattern for front wheel, rim 26" or 28", 1× crossed
When spoking in CargoPower motors applies as front wheel drive in rims 26" or 28":
- all spokes are guided through both flanges from the A-side (= drive side). All spoke
heads point to the A-side.
- Spokes are crossed 1×
- Spoke pattern analogous to that of the rear wheel 26" or 28" (cf. fig.4.1).
8.4.5 Spoke pattern for front wheel, rim 20" or 24", without crossing
When spoking in CargoPower motors as front wheel drive in rims 20" or 24" applies:
- all spokes are guided through both flanges from the A-side (= drive side). All spoke
heads point to the A-side.
- Spokes are not crossed (cf. Fig.4.2).

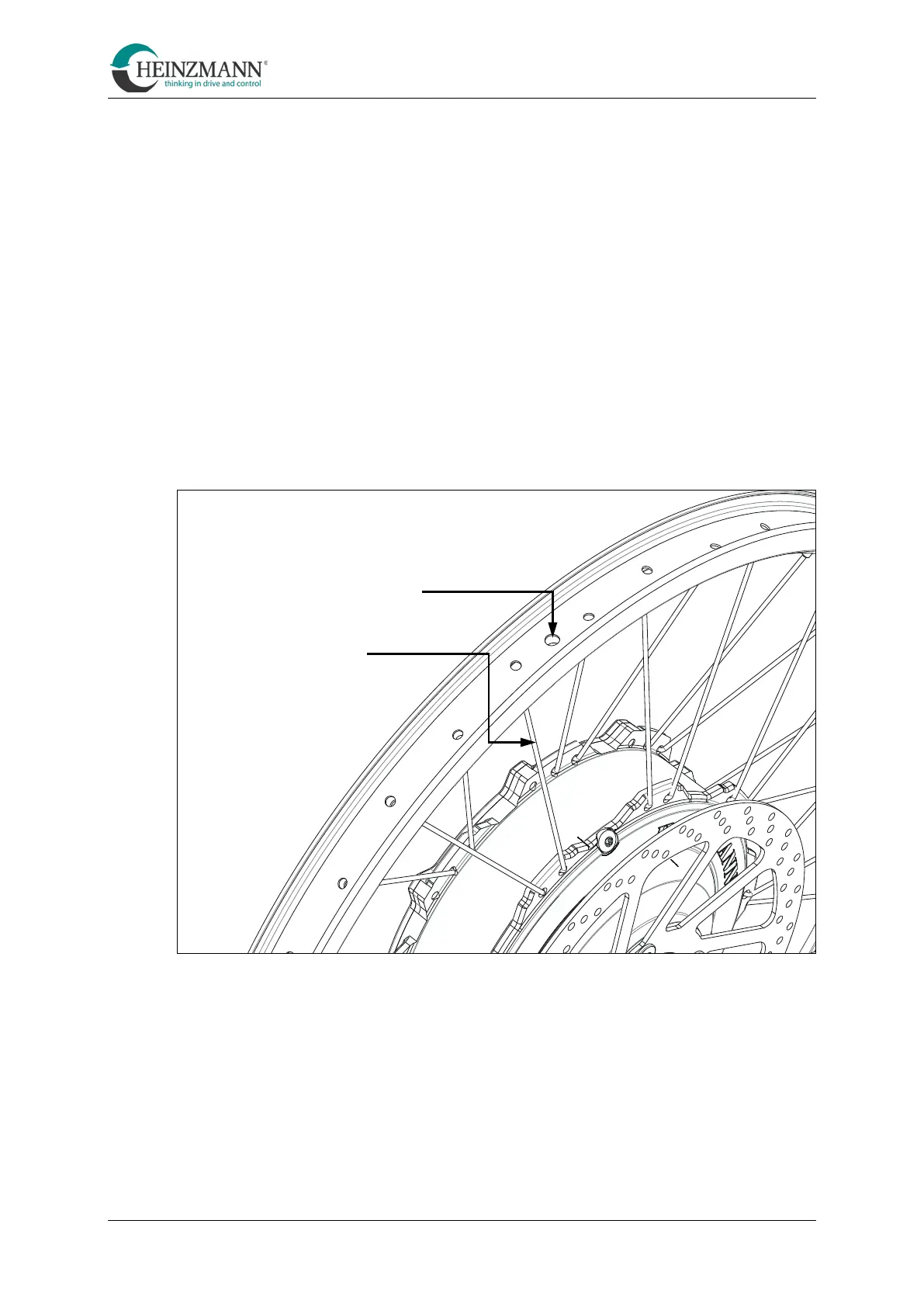

Fig. 4.2 Spoke pattern front wheel, rim 20" or 24", without crossing
8.4.6 Spoke pattern for rear wheel, rim 20" or 24", without crossing
When spoking in motors CargoPower RN 111 as rear wheel drive in rims 20" or 24"
applies:
- all spokes are guided through both flanges from the B-side (= side of the brake
disk). All spoke heads point towards the brake disk.
- Spokes are not crossed.
Spoke pattern analogous to that of the front wheel 20" or 24" (cf. fig.)
Valve bore
Spoke 1
