11.3 Servicing by manufacturer
It is advisable to have the AT2000 CPK serviced by
HellermannTyton once a year or after every approx.
1million bindings. This will allow the AT2000 CPK to be
checked and updated to the latest modification status.
Service contact addresses for all countries are posted on
the website: www.HellermannTyton.com
11.4 Maintenance schedule
WHEN? WHO? WHAT AND HOW?
Approx. every 50,000 bindings Setup specialist
f Check the tie advancer; replace if necessary, à"Checking
tie advancer" on page36.
Approx. every 300,000
bindings
Setup specialist
f Check the front cap; replace if necessary, à"Checking
front cap and position of cutter" on page36.
11.5 Repair
NOTE
Always perform a reset before commencing repair work,
à"Performing a reset" on page30.

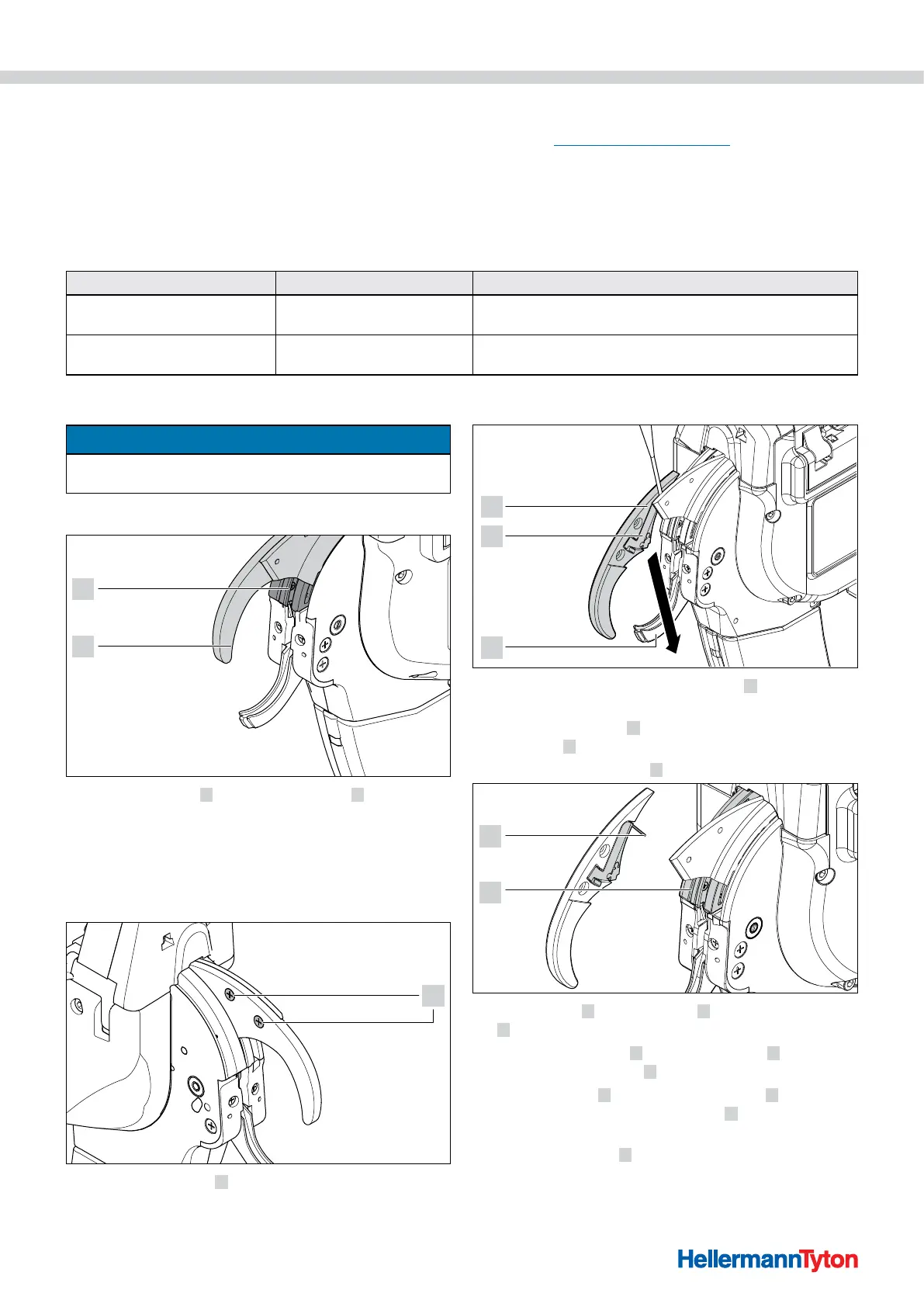

11.5.1 Checking upper jaw
1
2
f Check upper jaw 2 and upper jaw guide 1 for wear and
chipping.
f If necessary, replace upper jaw, à"Replacing upper jaw"
on page35.
11.5.2 Replacing upper jaw
f Switch the power pack OFF.
1
f Remove the screws 1 .
2
3
4
f Use a screwdriver to pry the upper jaw 2 apart (approx.
3 mm) at the top.
f Work the upper jaw
2 down and to the side past the
lower jaw 4 .
f Hold the upper jaw flap
3 in place during removal.
5
6
f Check spring 5 , upper jaw flap 3 and upper jaw guide
6 for wear and chipping.
f Angle the upper jaw
2 past the lower jaw 4 and seat it
in the upper jaw guide 6 .
f Hold the spring
5 with the upper jaw flap 3 while
inserting. Make sure that the spring 5 is correctly
positioned.
f Tighten the screws
1 .
