1 Ultrastar Serv24-HA Overview
1.1 Ultrastar
®
Serv24-HA Description

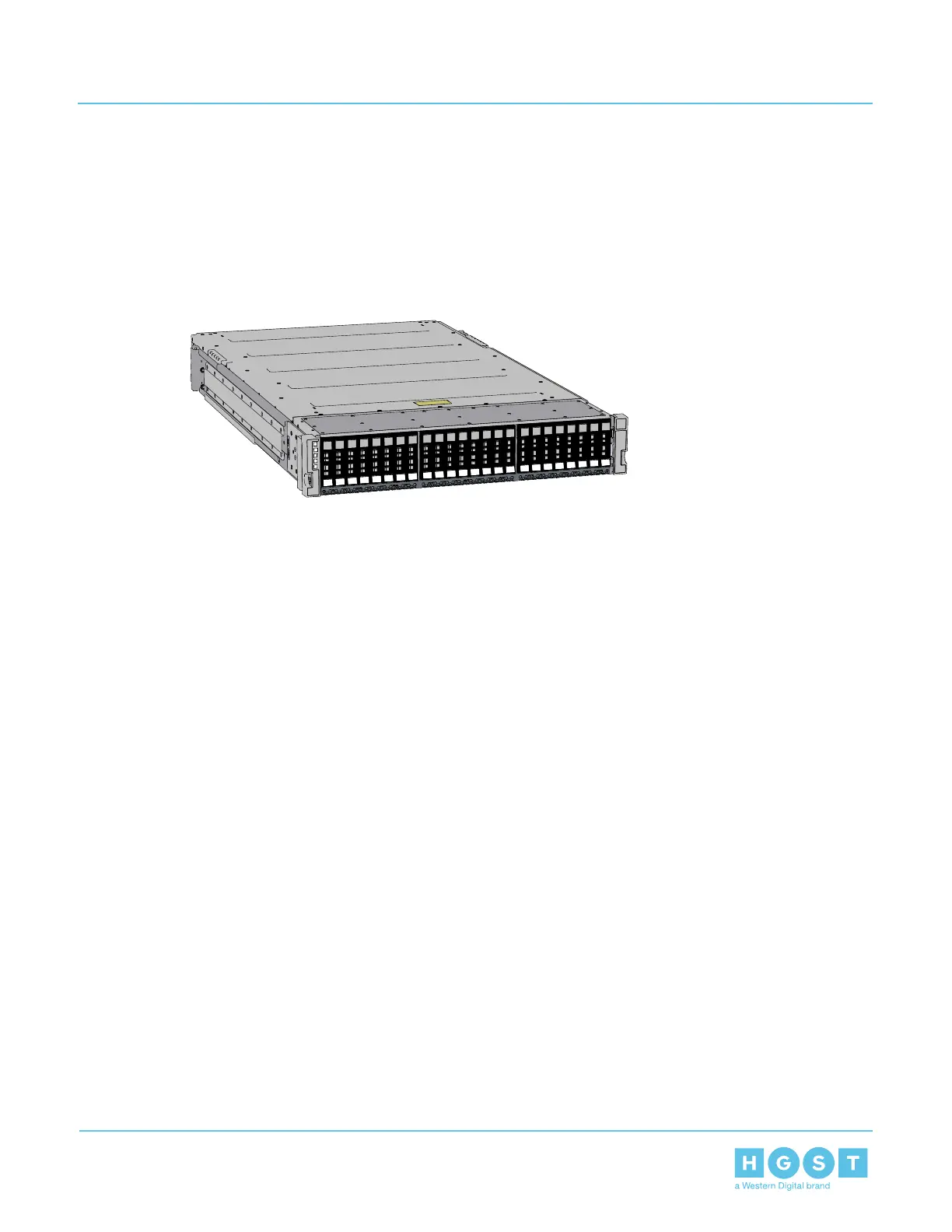

Figure 1: Ultrastar Serv24-HA
The Ultrastar
®
Serv24-HA is a high availability 2U, 24 bay, dual node storage server. The maximum data
storage capacity of the Ultrastar Serv24-HA is 184.32 TB using HGST Ultrastar
®
SN200 drives. For a full list
of compatible drives and total storage capacities, see the List of Compatible Drives on page 20. The
enclosure runs on an input voltage of 200-240VAC and consumes ~1800W under typical conditions. It is
designed to fit within a 2U rack space and requires a minimum of See EIA-310 Rack Standard.
• 2U Storage Server
• 24 NVMe drives
• Redundant 1800W PSUs
• Two hot-swappable Compute Canisters (each list item represents the content of one Compute Canister)
• Contains a Intel Purely platform motherboard
• Dual Skylake processor design with Lewisburg PCH
• Supports up to 12 DIMMs per CPU, 24 per Compute Canister
• Five fan modules
• Aspeed AST2500 Board Management Controller (BMC)
• Three PCIe generation 3 slots (one slot open for user expansion)
• Two M.2 boot drives
• Two dual-port 100 GbE NIC cards
• One VGA port
• Two USB 3.0 ports
• Four 10 GbE ports (per Compute Canister)
• One 1 GbE port for system management that can be controlled through IPMI or Web UI
• (optional) TPM Module
• (optional) Battery Back-up Module
11
1 Ultrastar Serv24-HA Overview
User Guide 1.1 Ultrastar
®
Serv24-HA Description
