d) Loop the retention clip around the cable and pinch it until the clip catches and locks in place.

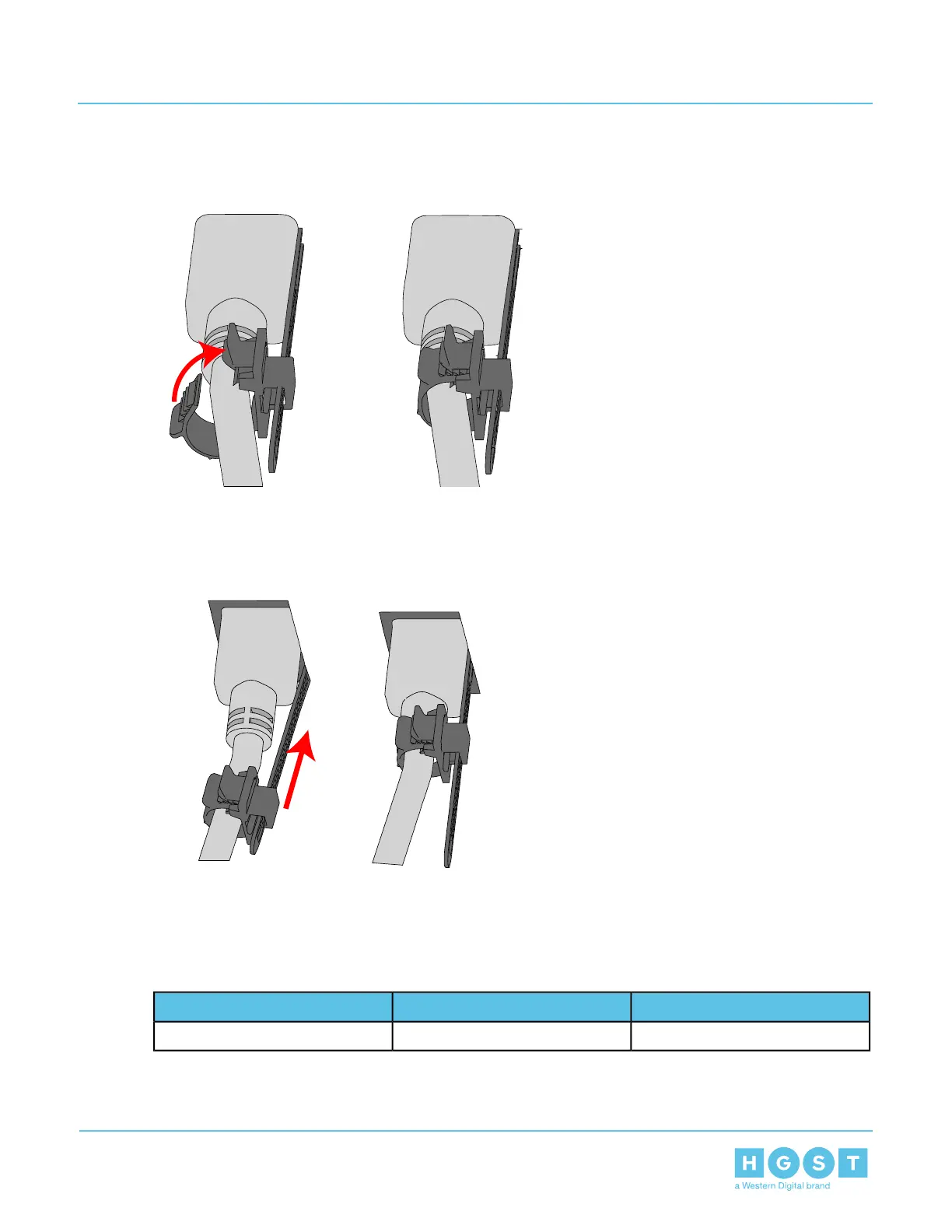

Figure 106: Cable Retention Mechanism
e) Slide the retention clip forward until it stops near the cable connector. Doing this will ensure that the
retention clip functions properly in the event the cable is yanked on for some reason.
Figure 107: Cinching Cable Retention Clip
3.10 Rails Replacement
Table 38: Replacement Procedure Info
Time Required# of People RequiredRequired Tools
15 minutes1#1 Phillips Screwdriver
1. From the rear of the enclosure, disconnect the power cord connected to the PSU.
78
3 Part Replacement
User Guide 3.10 Rails Replacement
